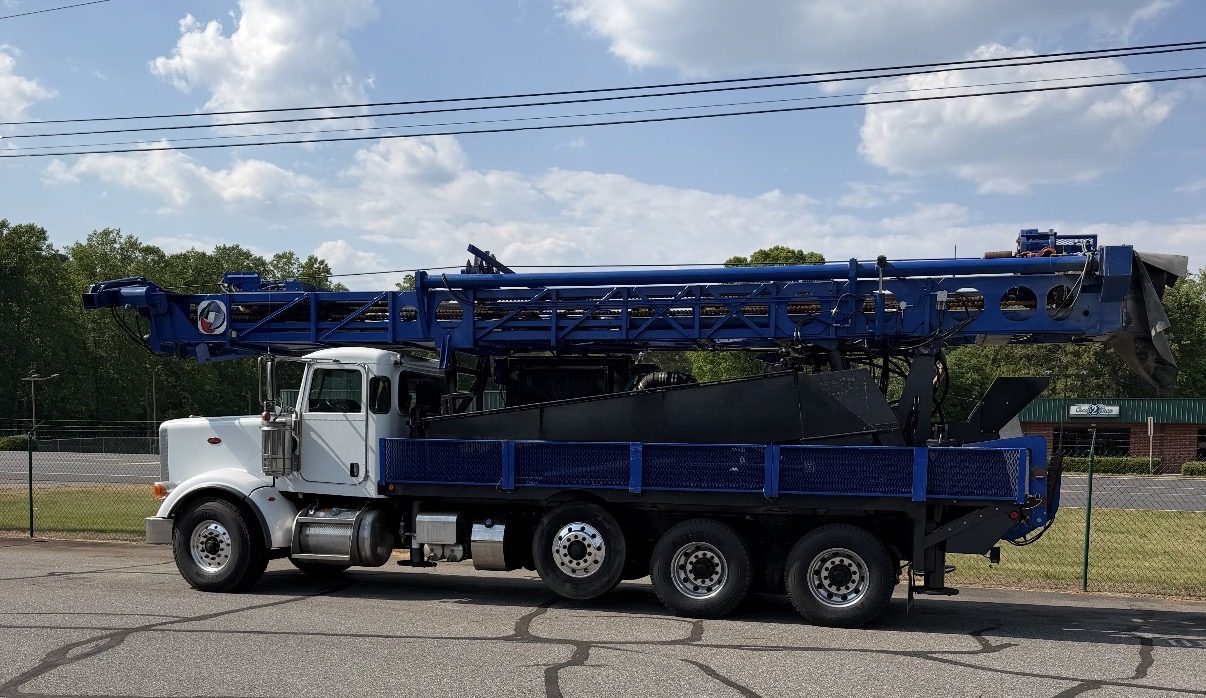

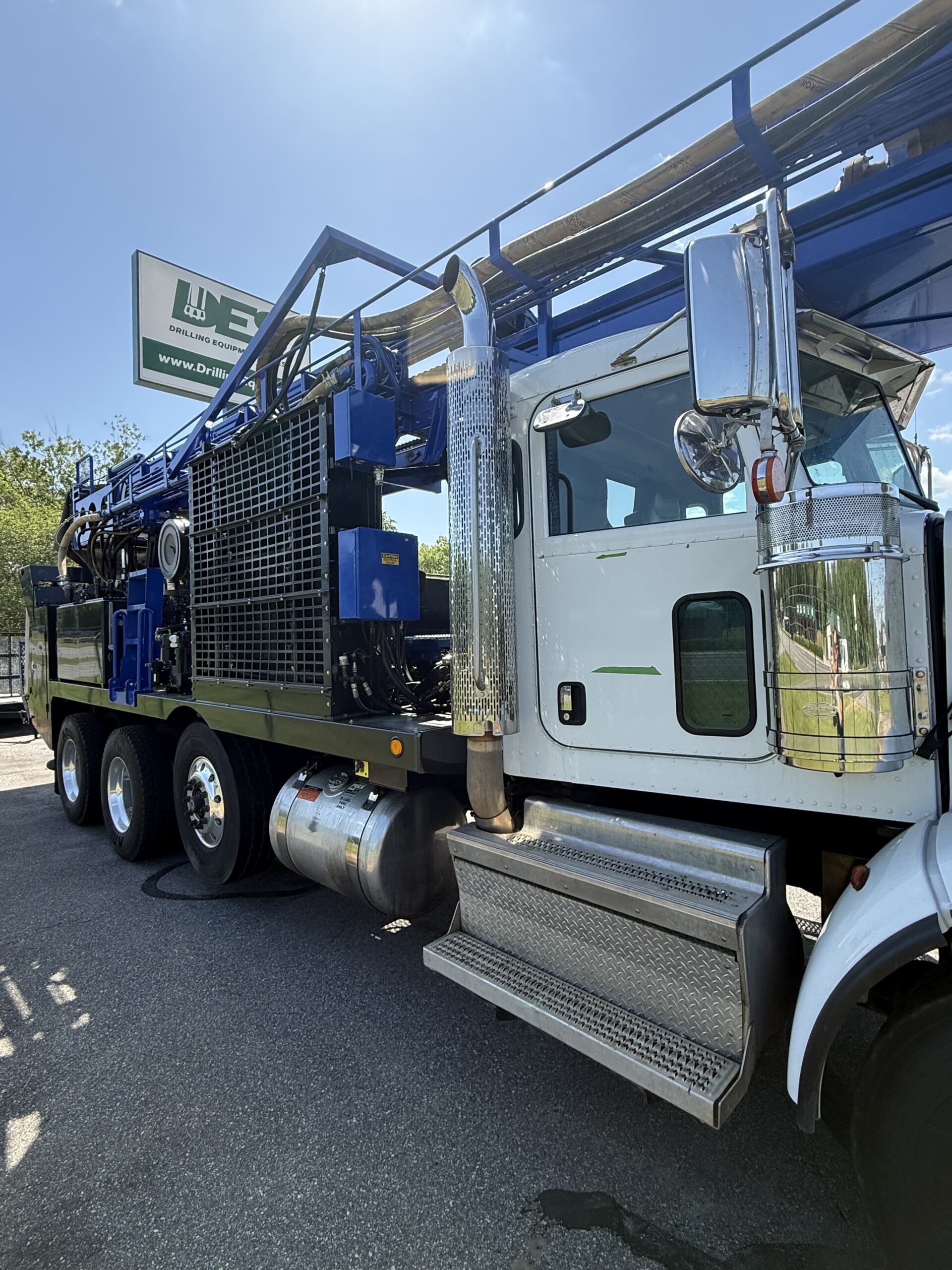

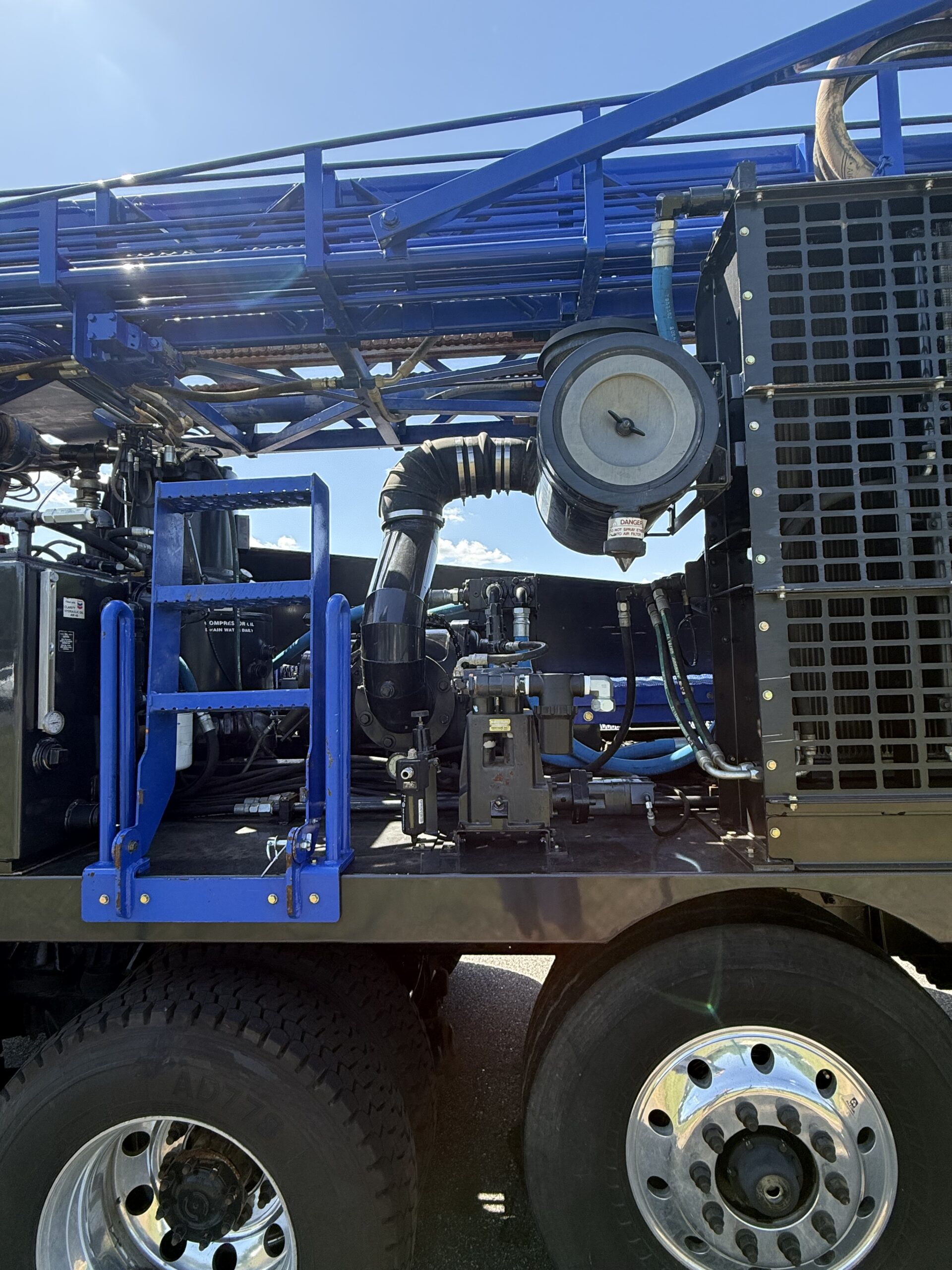

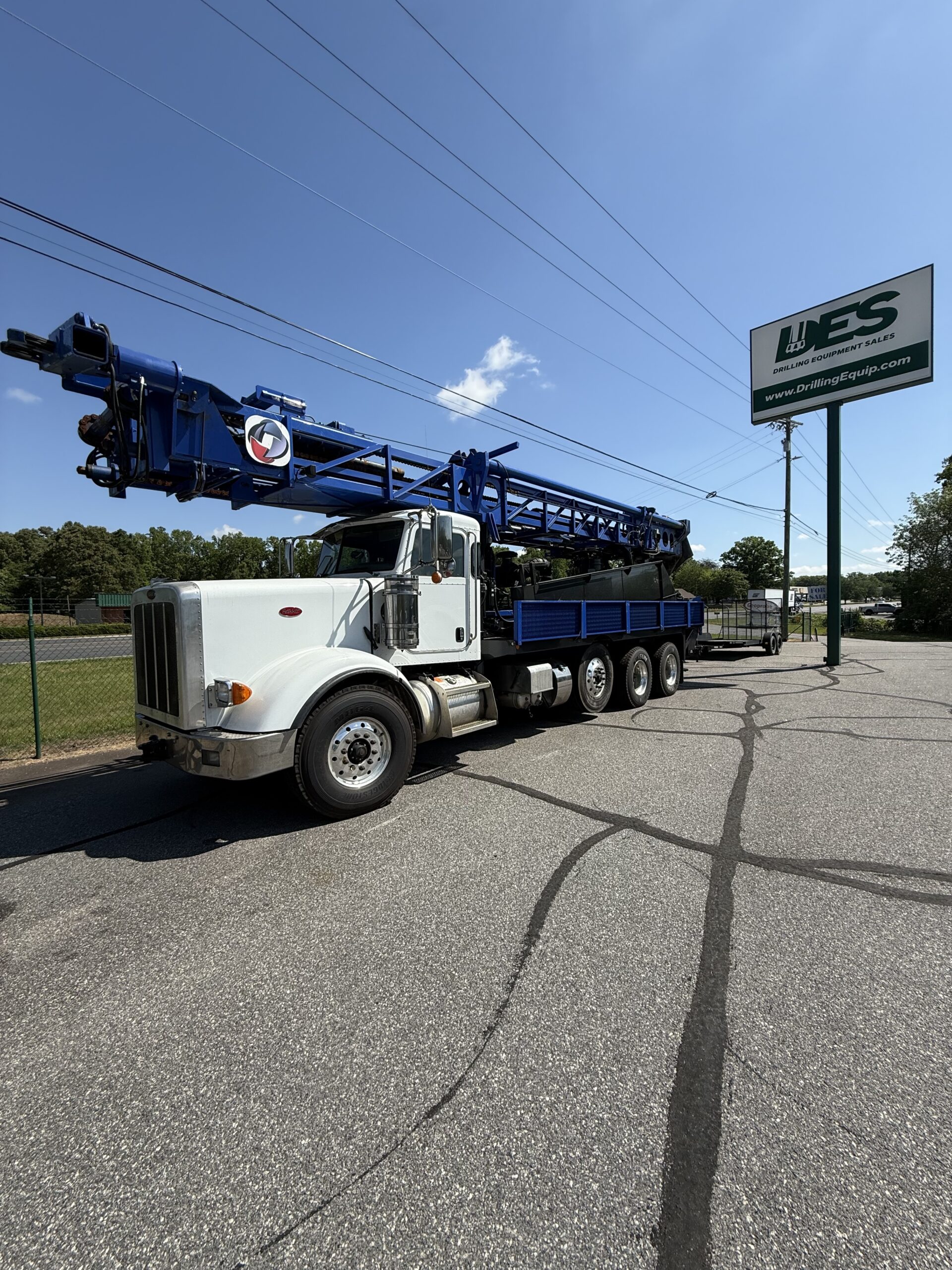

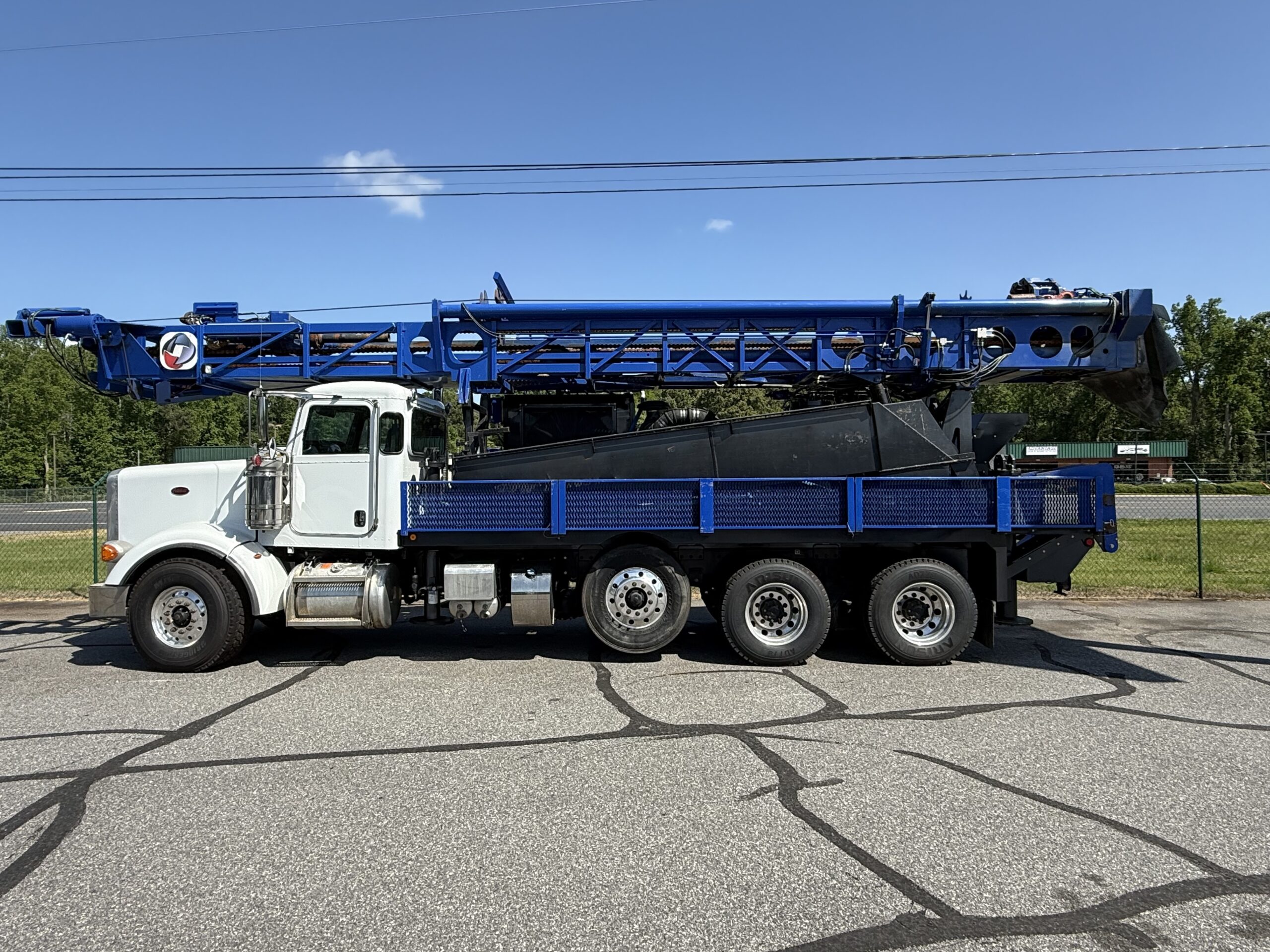

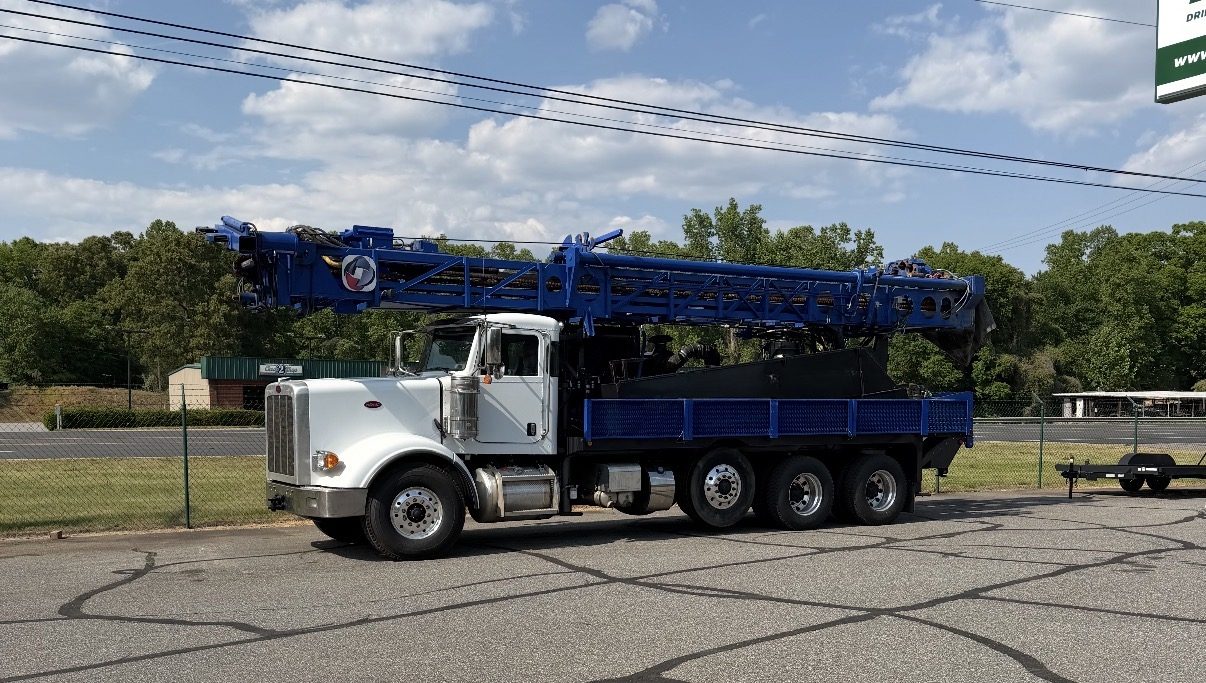

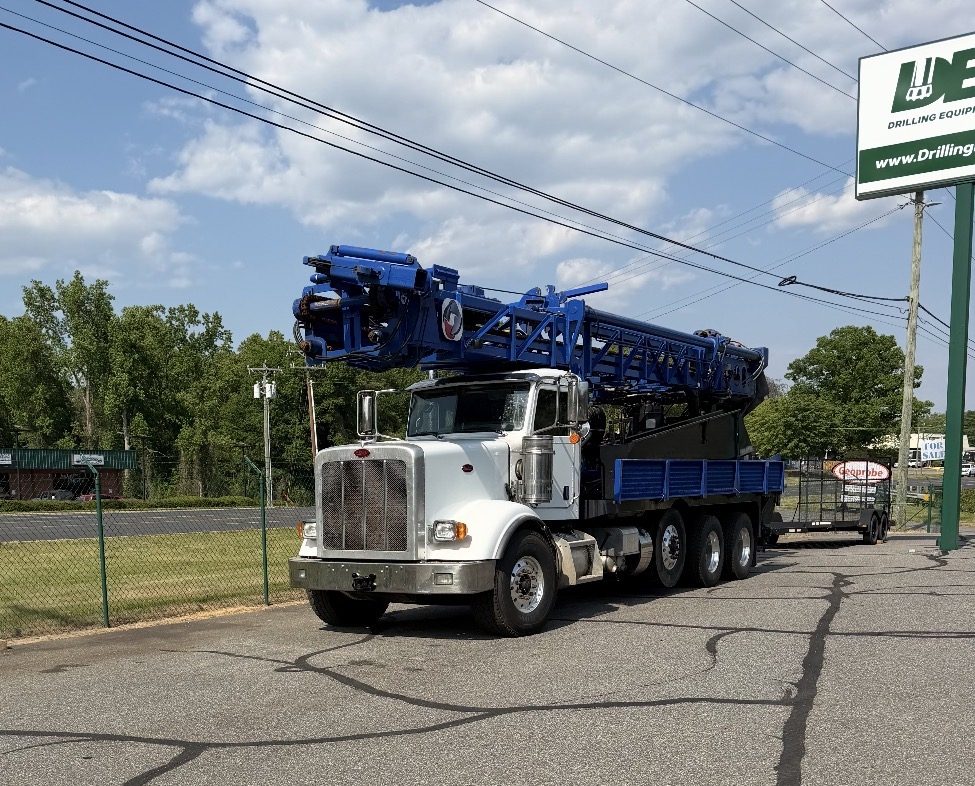

2022 Reichdrill 690

Description

Reichdrill RTD69

Rotary Head 0-106 RPM @ 85,855 lb-in (9700Nm) torque w/high pressure filter

Reichdrill or equivalent 1070 CFM @ 375 PSI (30.3 m 3 /min @25.9 bar) compressor

Air pressure regulator; 8-gallon (30.3-L) air line lubricator

Multicore cooler for up to +120 0 F (+49 0 C) ambient temperature

Thermostatically controlled fan circuit for improved cooling & fuel savings

Mast 34’ (10.4 m) w/28’ (8.5 m) stroke; Ø22 in (559 mm) table opening

43980-lbf (195.6-kN) pullback (160HS chain) w/35000-lbf (155.7kN) pulldown (140HS chain)

REGEN for increased rapid feed function

Air operated holding wrench w/hydraulic raising/lowering

9 pod carousel for 4” (102 mm) x 20’ (6.1 m) drill pipe w/hyd indexing

Hydraulic swing & hydraulic carousel lock pins

8500 lb (3855 kg) winch

Hydraulically extendable jib boom w/270-degree swing

Wireless radio helper’s remote controls for jib swing, extend, & retract, carousel index/lock,

winch up, and two speed winch down

20 GPM (76 LPM) direct drive water injection pump

Independent hydraulic circuits for water injection and winch controls

Torque limiter control w/by-pass on/off

Holdback control w/by-pass on/off

Feed override w/by-pass on/off

Mud line stand pipe w/hose spud and cap

Cribbing rack (rack is mounted in mast locks)

Auxiliary blowdown valve to vent the downhole air from the drill string during pipe changes

“Y” piping and 2” ball valve to add auxiliary air to the drill air stream

Hydraulic cylinder operated cable breakout wrench & Petol wrench w/chain for pipe handling

4-leveling jacks: 2-rear 36” (916 mm) stroke, 2-front 48” (1.2m) stroke, all include Ø7”

(178mm) jack boots and built-in safety check valves

Sloped 15-piece rod box w/grab rail and pipe riser; rear mounted tow hooks

Drill pipe lifting rod

Spindle sub-4” API IF pin thread & customer specified box thread

Ø4” (102 mm) or Ø4 ½” split table bushing

Toolbox

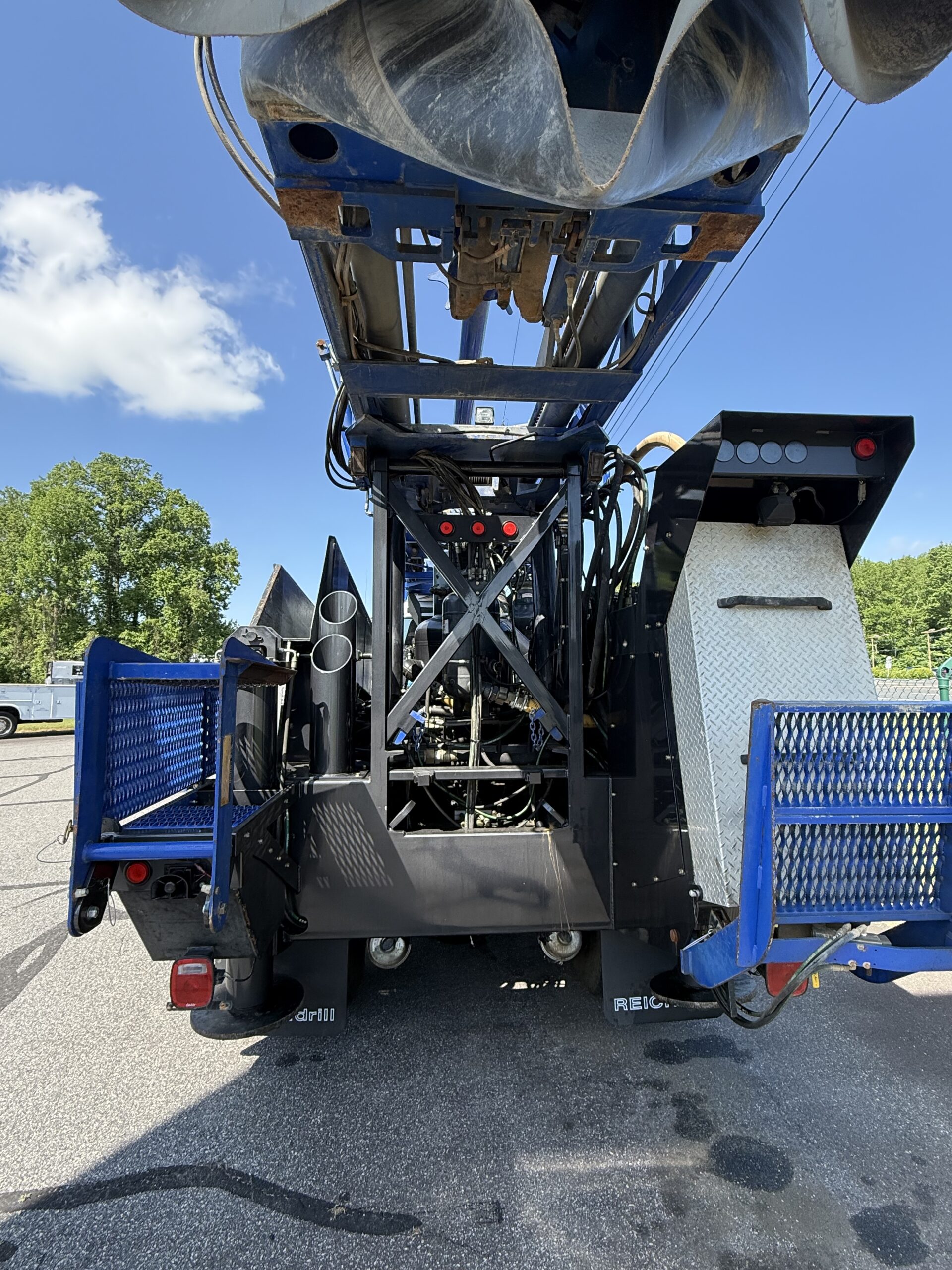

Folding rear platforms for operator and helper, 19” (483 mm) wide folding split walkway

Locking aluminum vandal cover to protect the operator’s station controls and gauges

Five (5) Halogen night lighting package includes mast and operator’s console

Safety items: Falling drill pipe guard mounted on mast, safety kit including: two hard hats & one fire extinguisher, & one (1) Emergency (E-stop) mounted at operator’s control station

Two (2) combined safety, operations, maintenance & parts on digital USB drives

Standard lubricants: compressor = Chevron HiPerSyn IS032, hydraulics = Coastal AW46 oil

Gear lubricant = 80W-90 & grease = Chevron Ultiplex EP2

Paint: Reichdrill standard 2-tone paint; Reichdrill medium blue and Reichdrill charcoal

Control station hood

18-piece drill pipe rod box in lieu of standard 15-piece

Helper’s platform mounted “junk box”

Dual hammer holder for 7” and 10”

Carousel mounted stabilizer holder (indicate size)



Truck chassis:

Miles- 21,836

Hours: 4,143

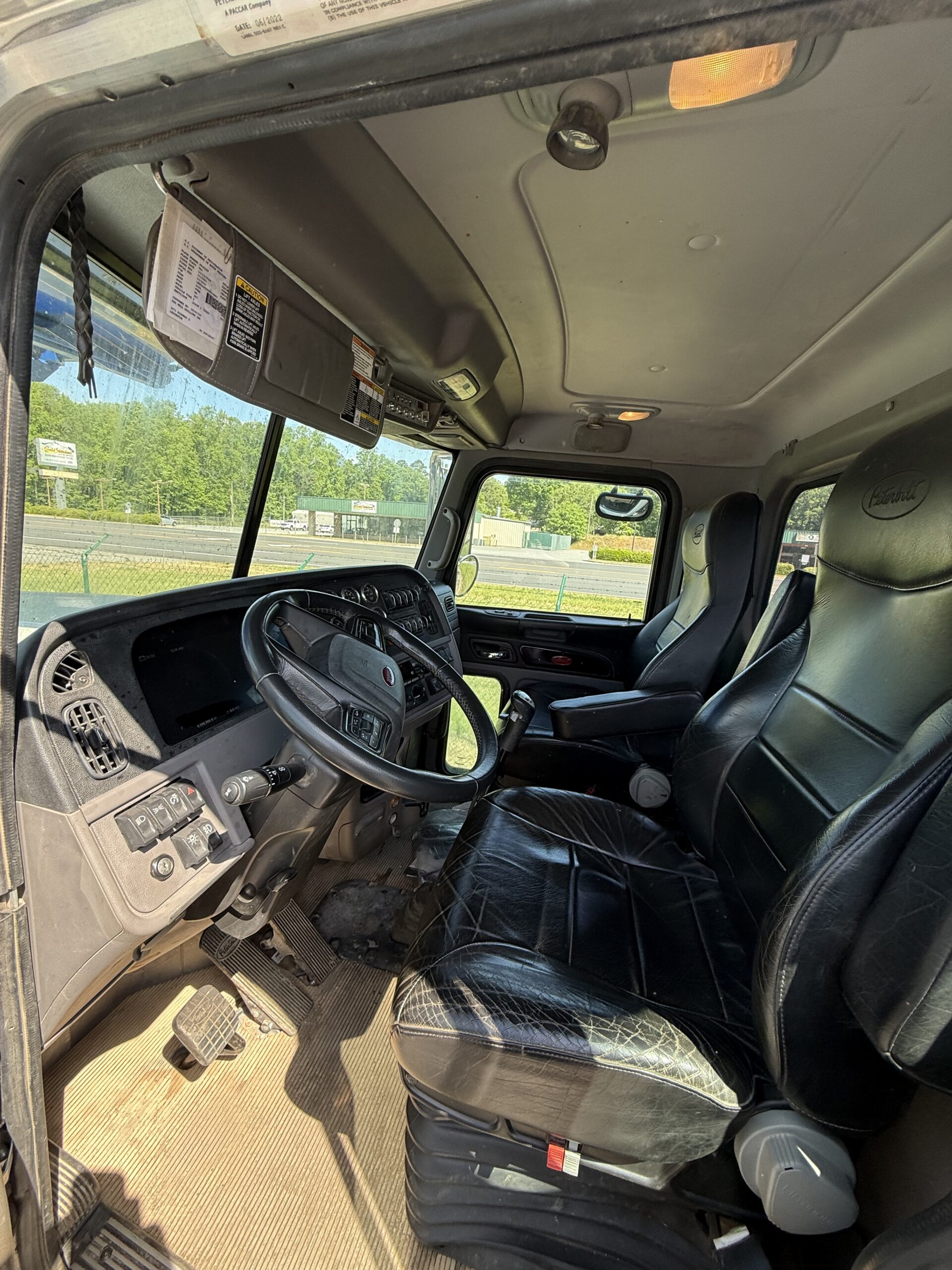

2023 Peterbilt Model 367, 6×4 chassis, Cummins X15 605 HP diesel engine w/1850 lb-ft torque,

Eaton RTLO189188 18 speed transmission, engine brake, 46,000 lb rear axles, 22,000 lb front

axle, Hendrickson RS-463 suspension, differential lock w/speed interlock, 20000-lb steerable lift

axle, Bluetooth phone, AM/FM/CD Weather band radio, Cobra 40-channel CB radio, heated

mirrors, battery disconnect, A/C, cruise control, air dryer, aluminum wheels, dual 80 gal fuel

tanks, DEF tank w/capacity of 20.7-gallon, engine exhaust after treatment located under RH cab

w/vertical exhaust stack, battery disconnect switch; truck includes OMSI PTO model PFT-

PCVT/3000 with 1:1 drive ratio & electronically controlled pneumatic clutch for compressor drive
