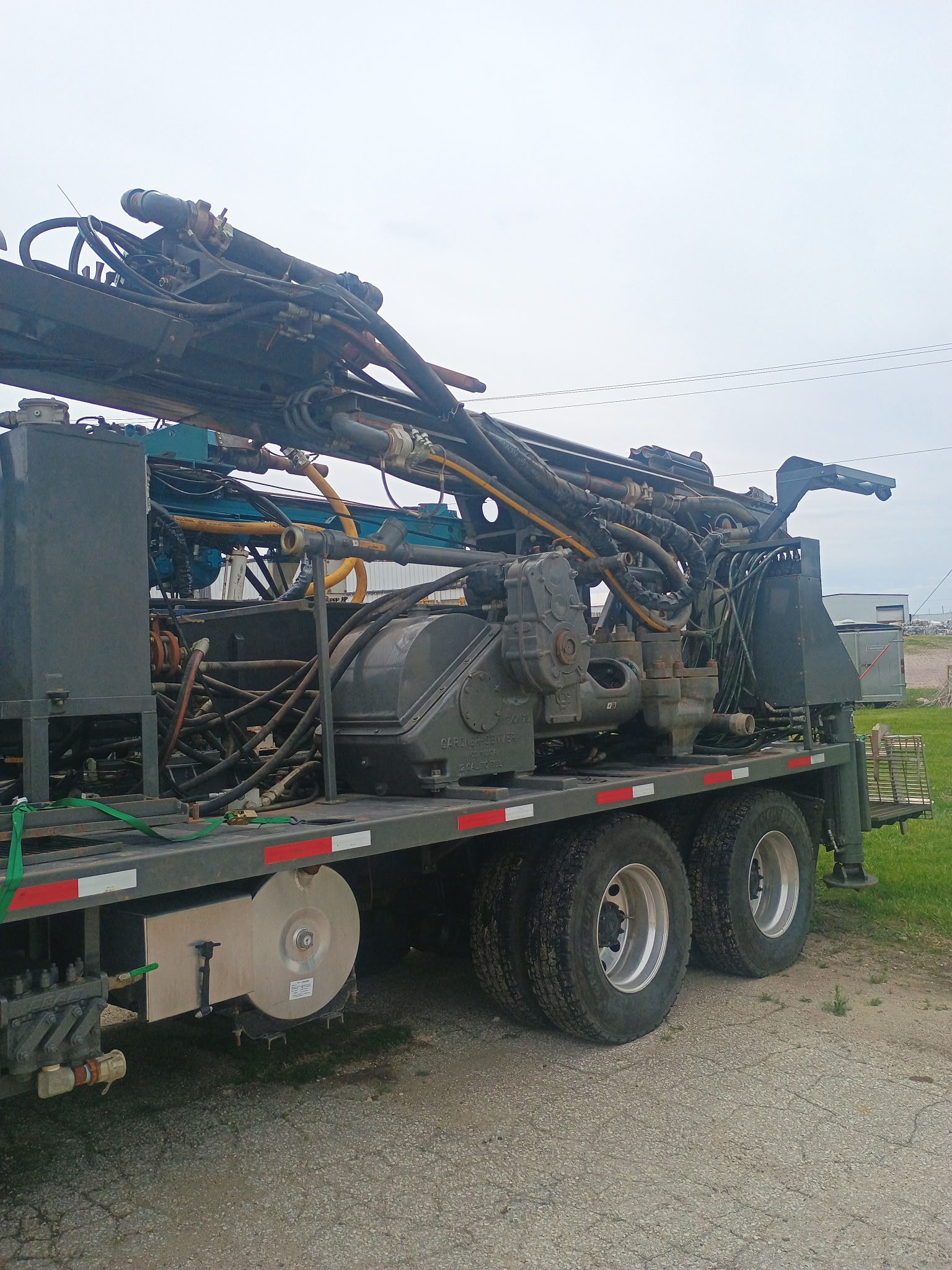

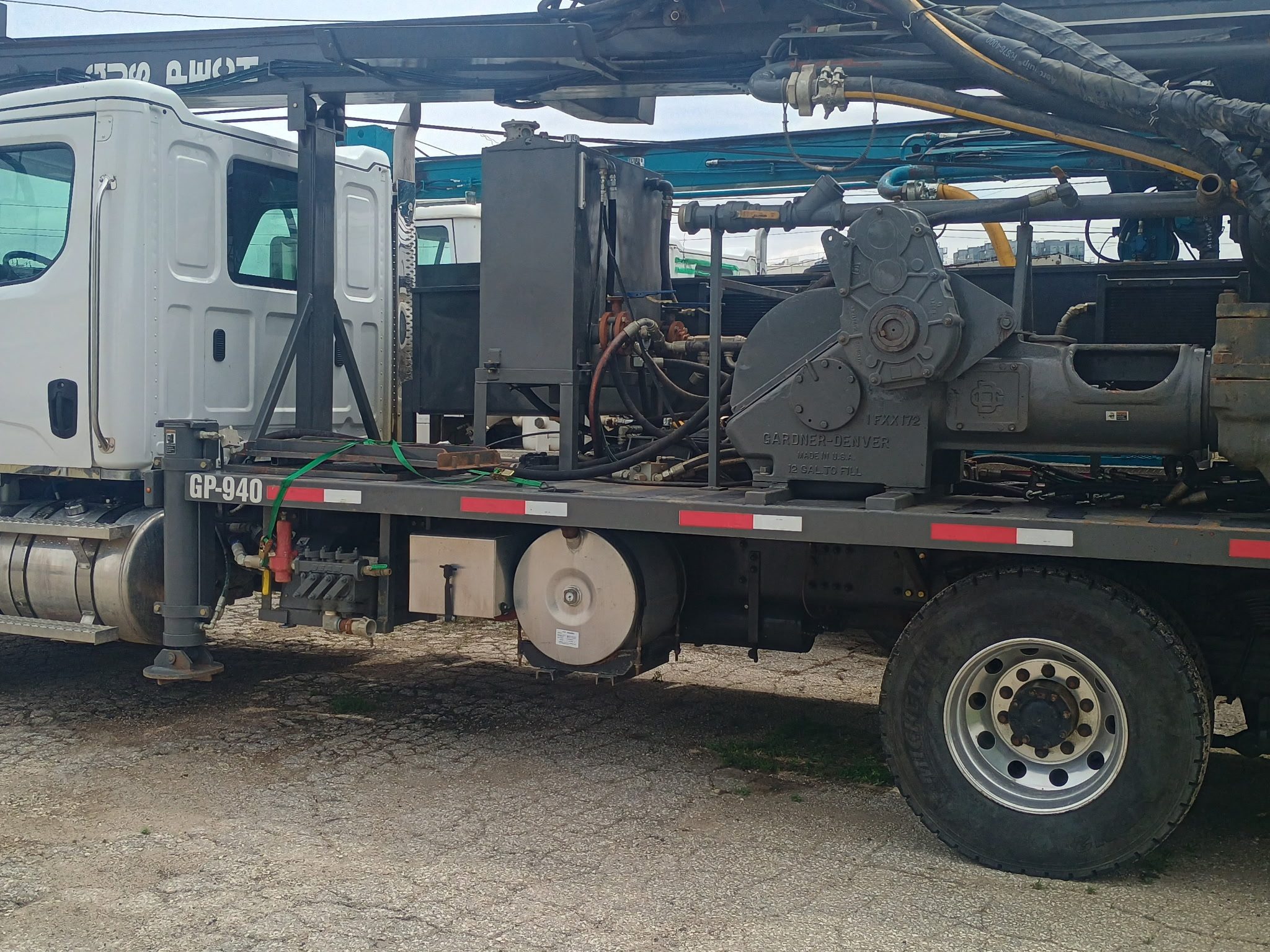

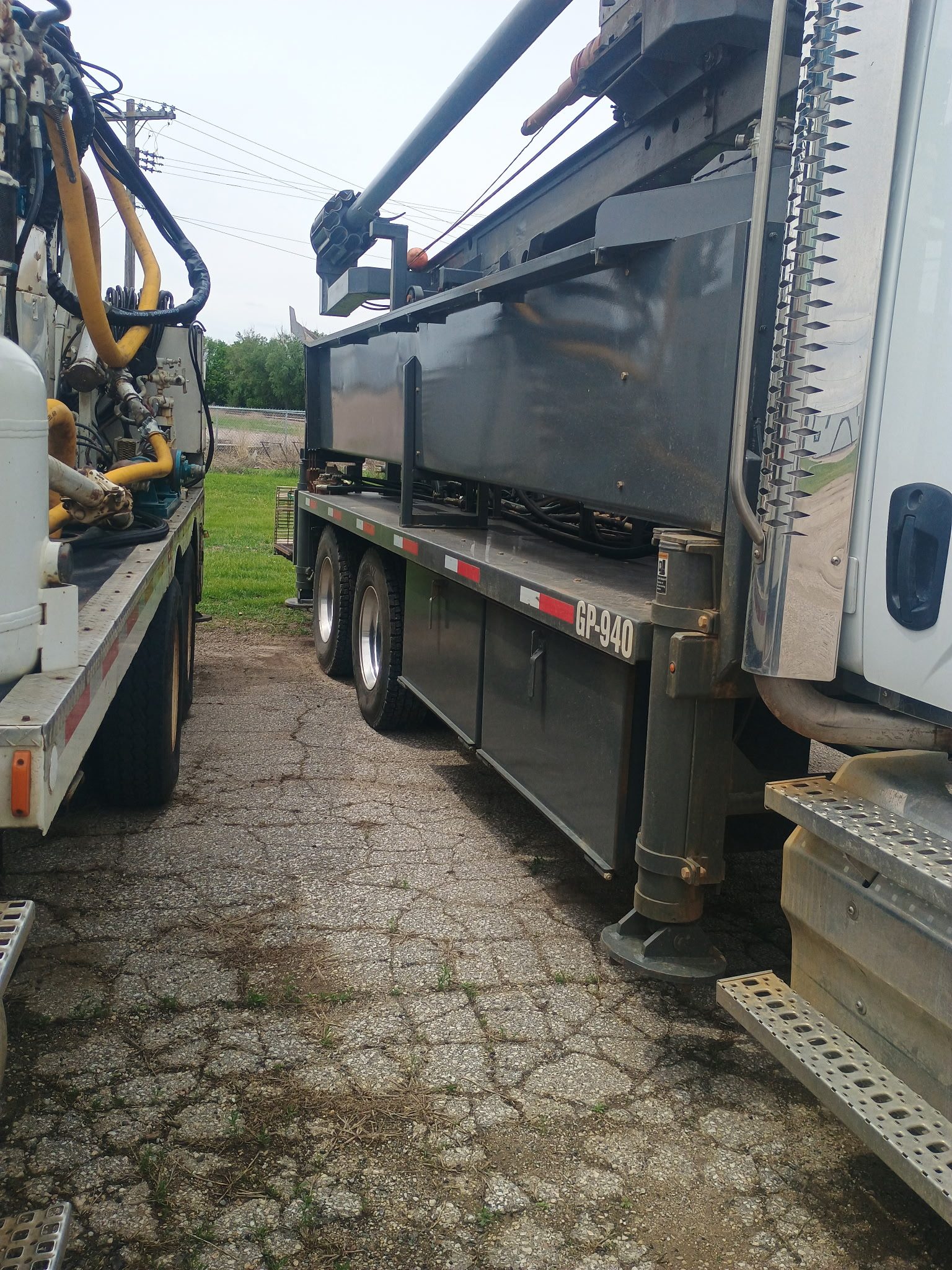

2024 Gus Pech GP-940XHR Brat

Description

GP-940 hydrostatic top head drive (0-107 RPM@ 9,000 ft lbs., 0-200 RPM @ 4860 ft. lbs. torque) –

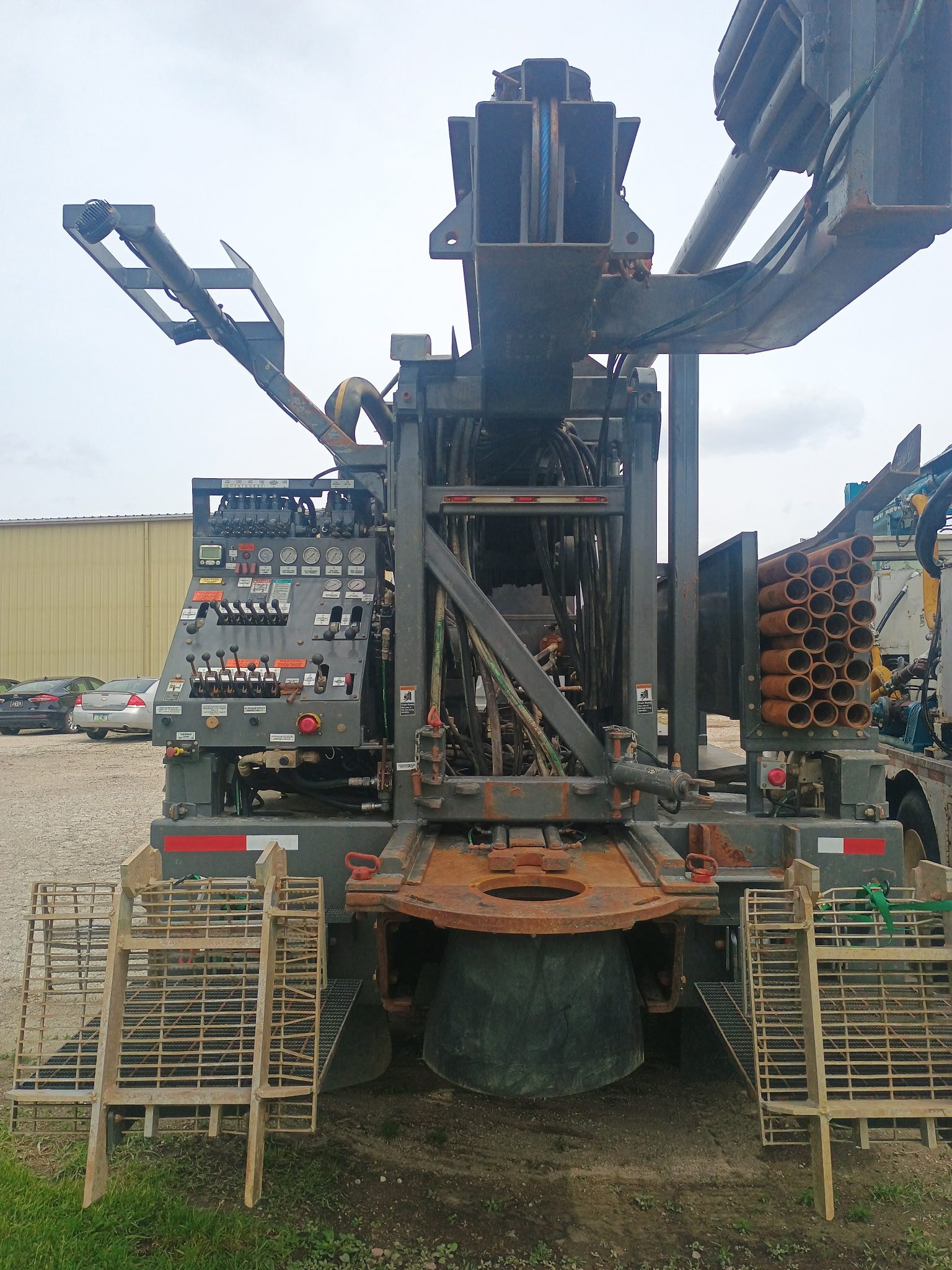

HD – 24” clearance rotary style drill table

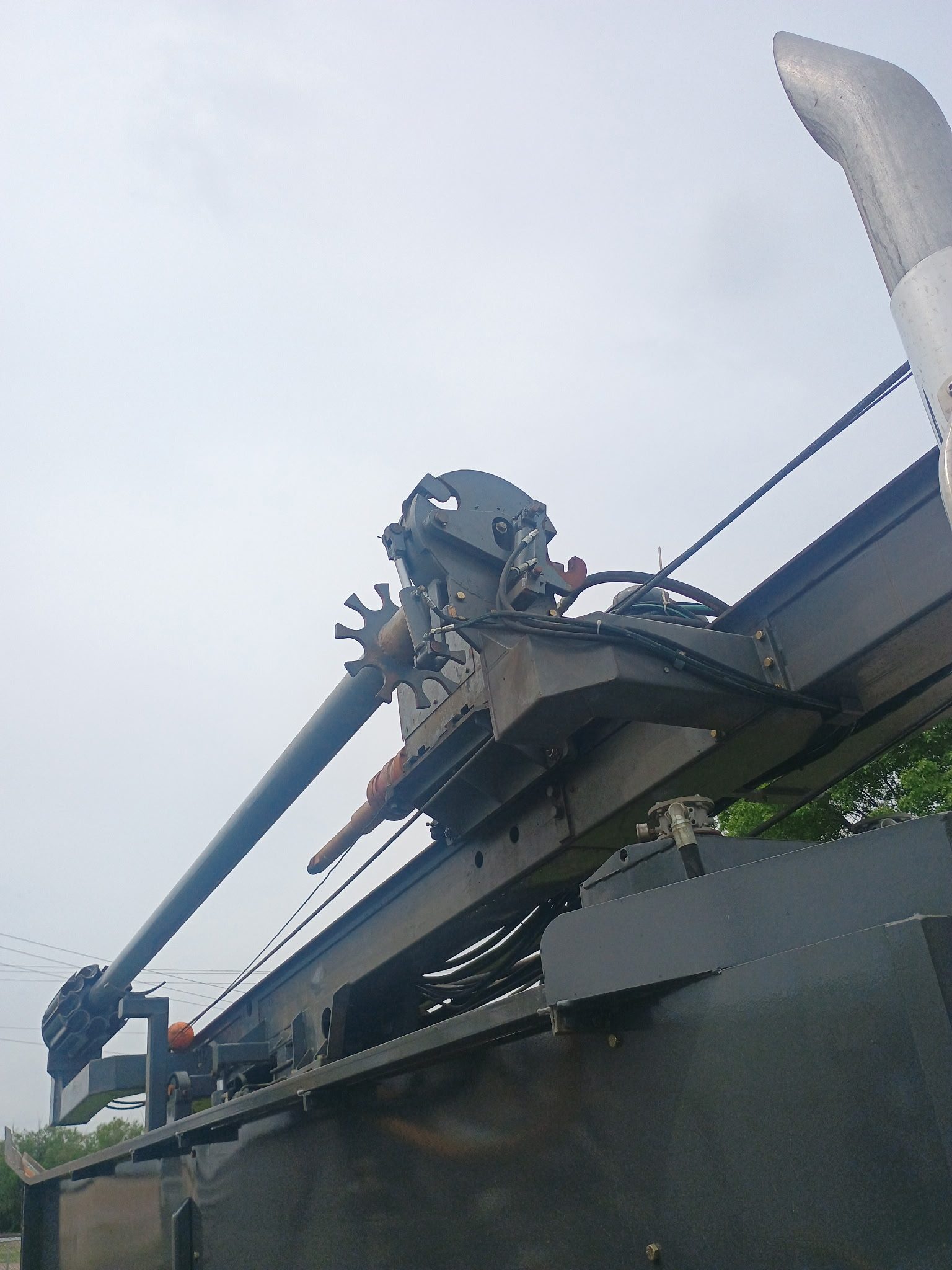

Two-way cross-top head slide; planetary top head drive

26’ stroke, cable, hyd. cylinder actuated pulldown/retract drill system (pulldown 32,637 lbs., 73’ per minute) (retract 40,000 lbs., 57’ per minute retract), (12″ tube style mast); Tower tool carrier for transportation

Two-speed retract; Pulldown/holdback feed control system; Bypass circuit for rapid pulldown/retract system

Hydraulic pump drive systems with enlarged pump for air compressor

HD hydraulic swing around jib for main winch line, no extension

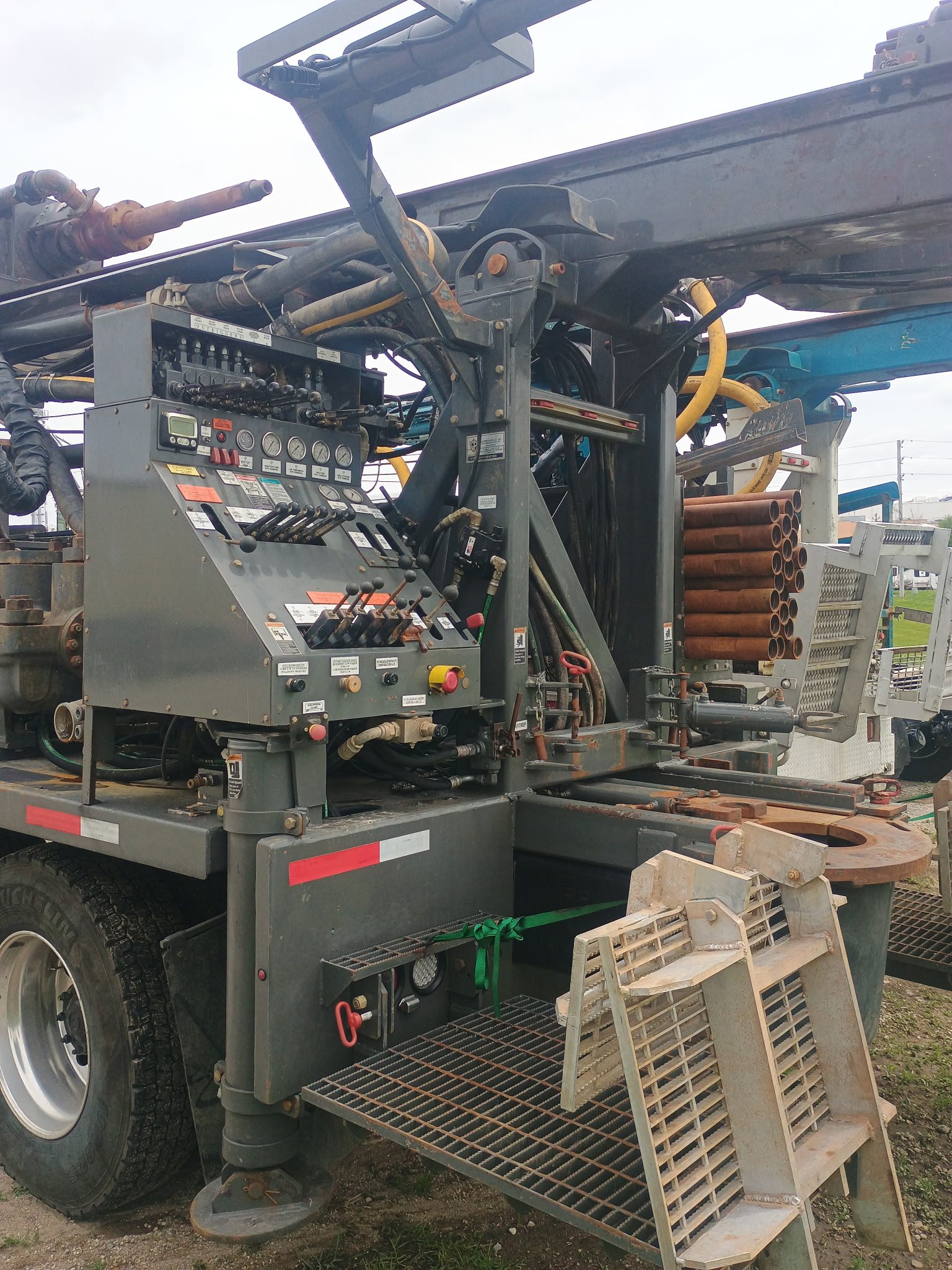

Operator controls including tachometer, key ignition switch, and gauges pertinent to the operation of the drill

Operator and helper foot stand – aluminum

Outrigger 4 point hydraulic 5” x 30” x 3” front and rear with anti-slip strips on bottom of outrigger pads

Rotary package:

Western Rubber SI swivel, hoses, safety cables, valving, piping, suction hose and HD Break out wrench

5,000# Braden BG8B winch, 0-475 fpm@60 gpm; 1/4”x1200’ cable w/swivel hook

18,000# Pull-master winch w/rapid reverse 0-96 fpm up/0-440 fpm down; 5/8”x150’ cable w/slim line & swivel hook

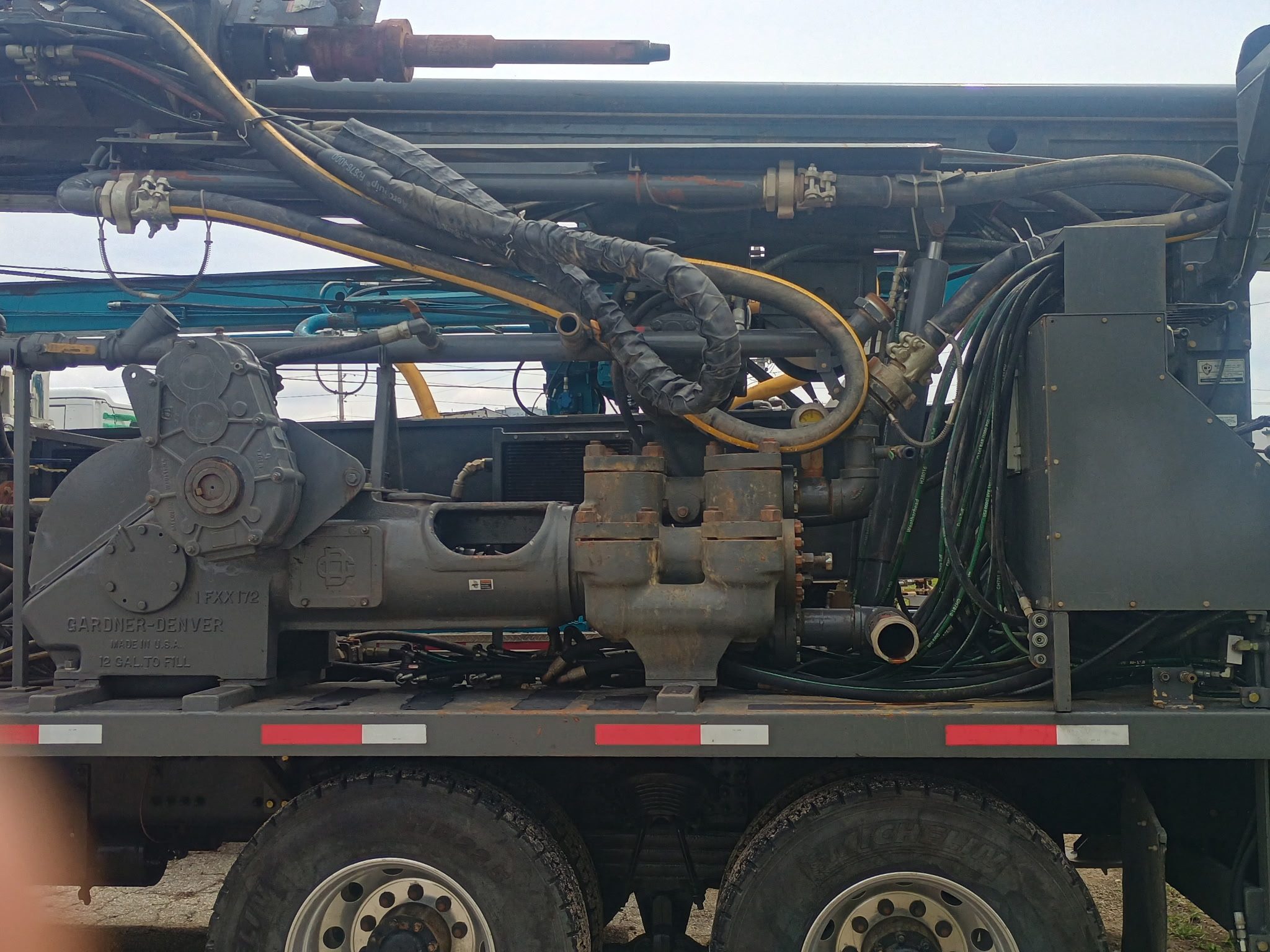

6 x 8 GD Piston mud pump with hyd. motor, HD coupler, frame, installed

L09180 Bean piston injection pump (28 gpm @ 700 psi), w/hyd. motor, frame and installation

500 CFM/200 PSI screw air compressor w/hyd. motor, HD coupling, frame, tank, installed

HD cooling system for air compressor/fans, extra return line filters and install both return line/filters to top oil tank

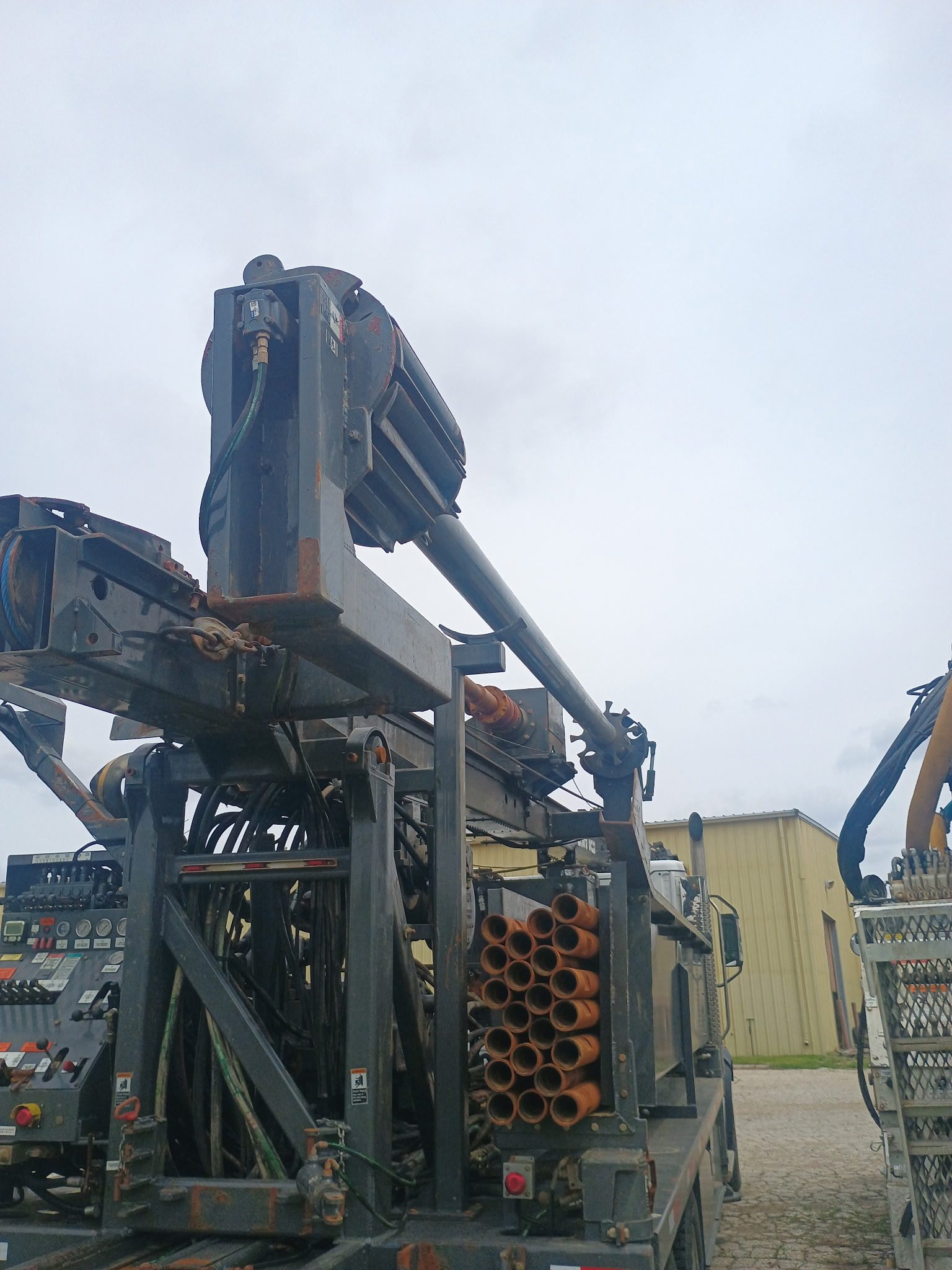

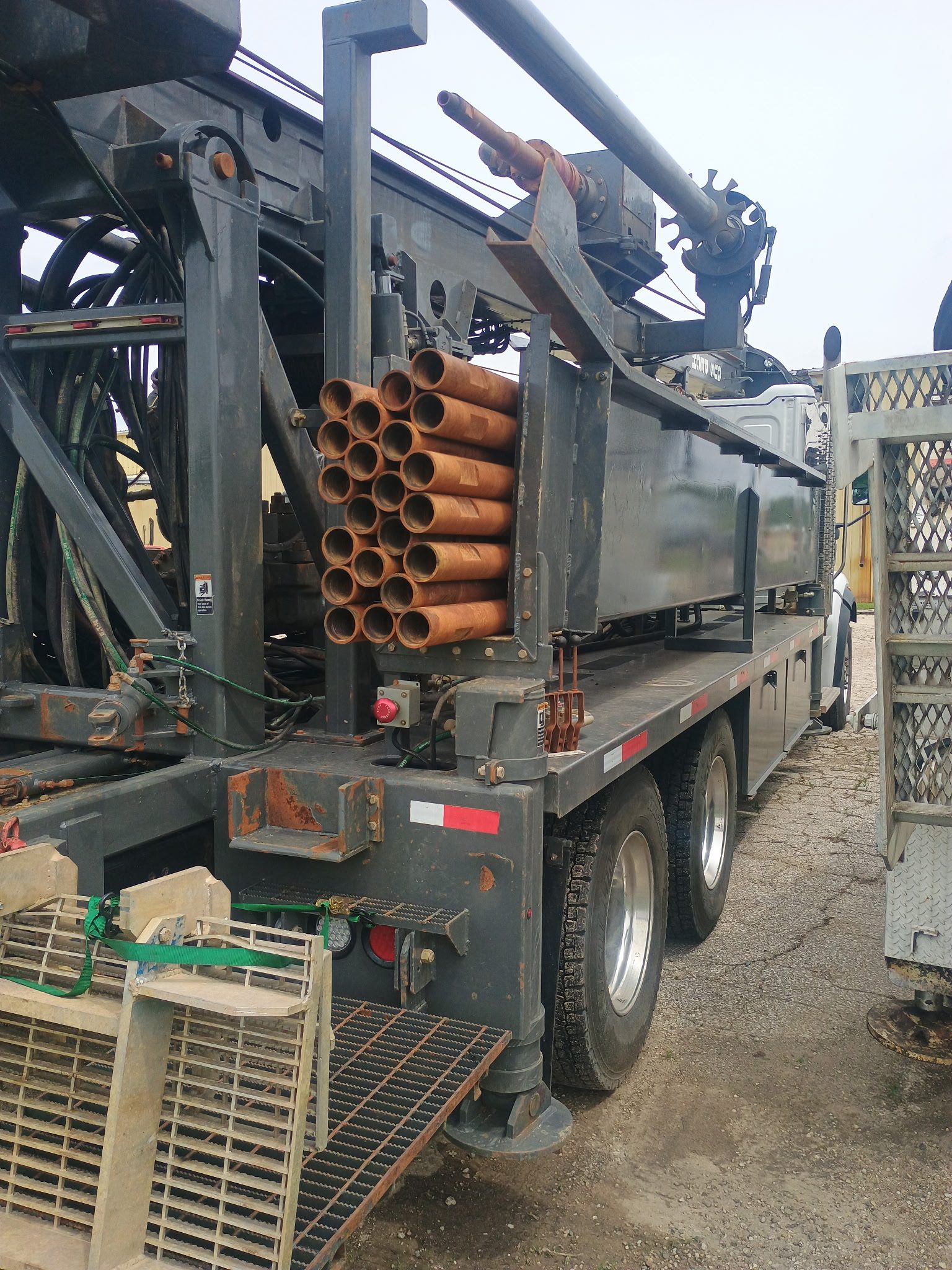

Stationary drill rod rack with drill rod slide for 3 ½” x 2 3/8” IF x 20’ rods/10 Rod Carousel for 3 ½ inch drill pipe

Two toolboxes – aluminum

Drill rod adapter attachment 8 bolt, sub saver 24” overall for 3 ½” x 2 3/8 IF

Drill rod bushings for 3 ½” flush pipe, and breakout fork for lower drive table

Special drilling lighting system on tower and head guard

Painted Jeep Gray color

Truck mounting and programing

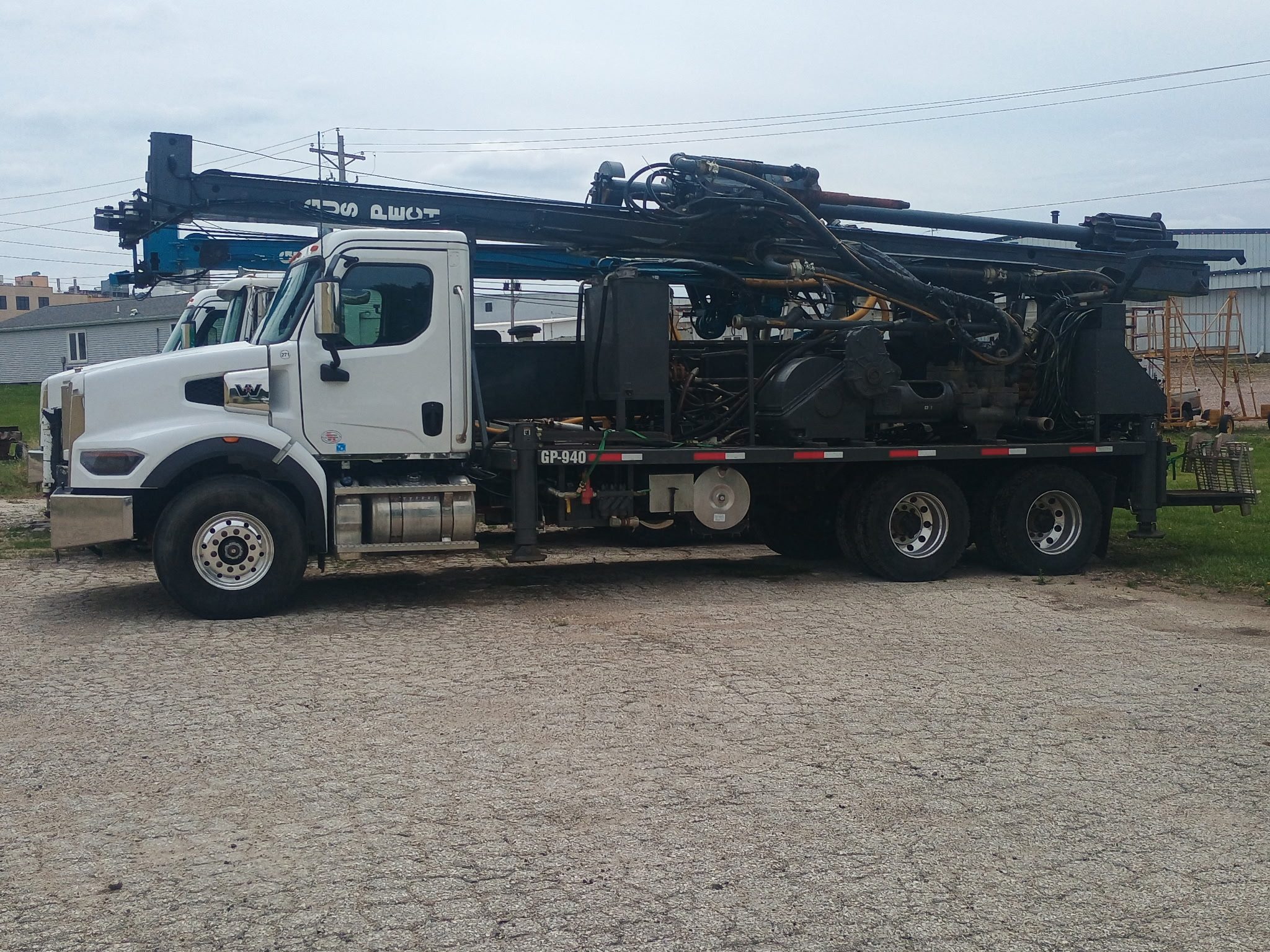

Mounted on:

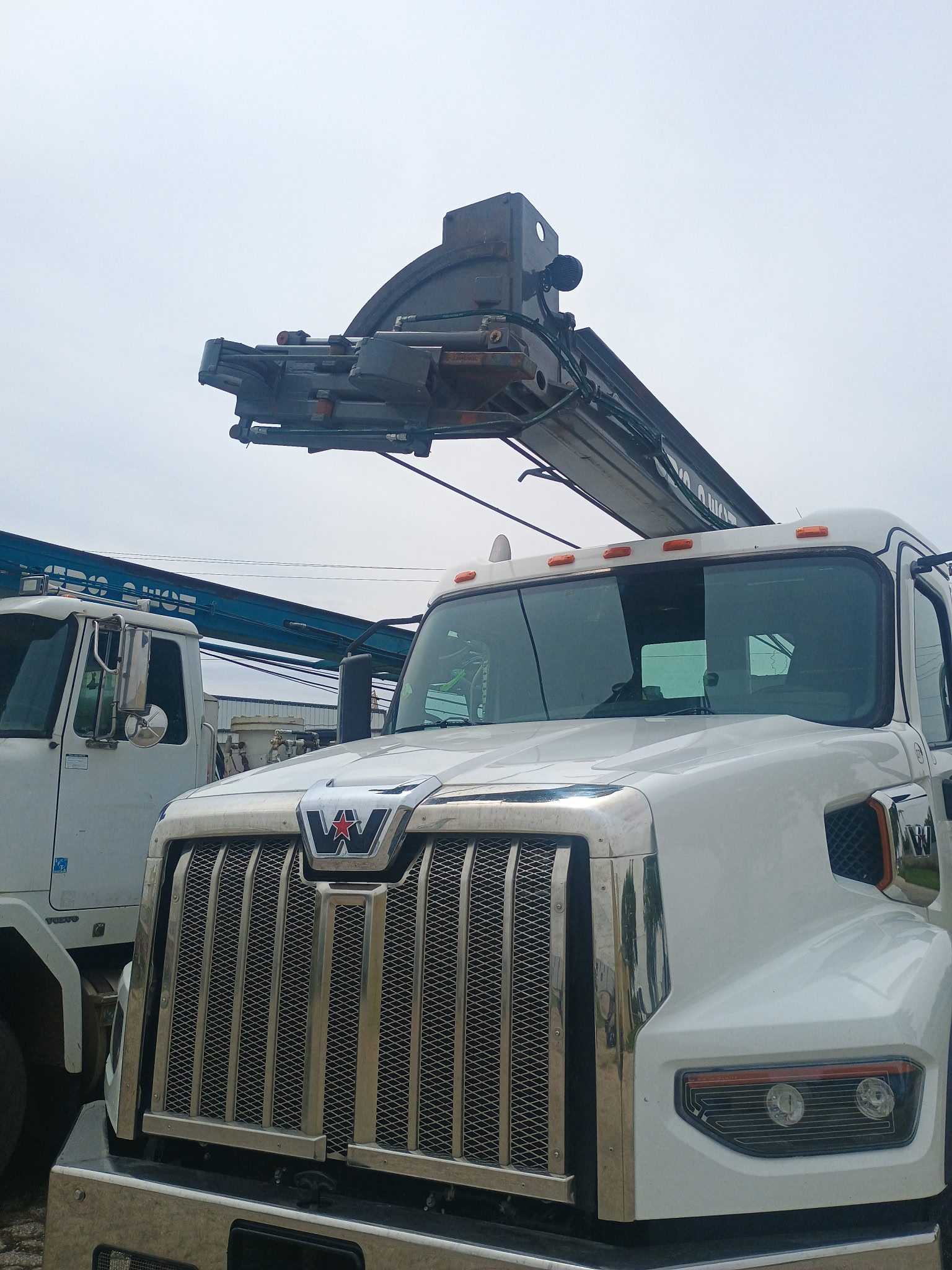

2024 Western Star Truck

20,000 lb Front Axle, 46,000 lb Rear Axle, 565 Horse Power, 4700 Allison Automatic Transmission.
