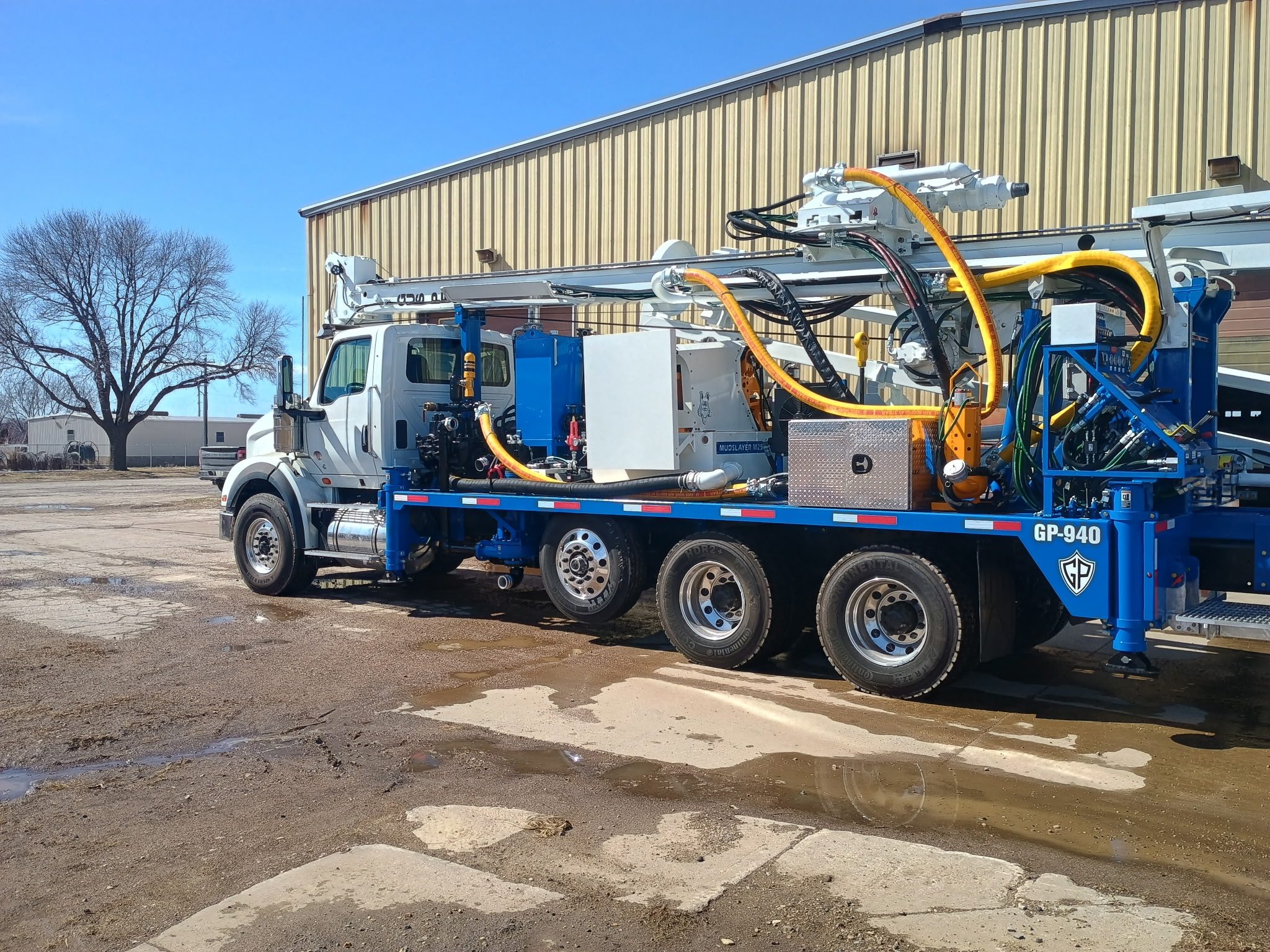

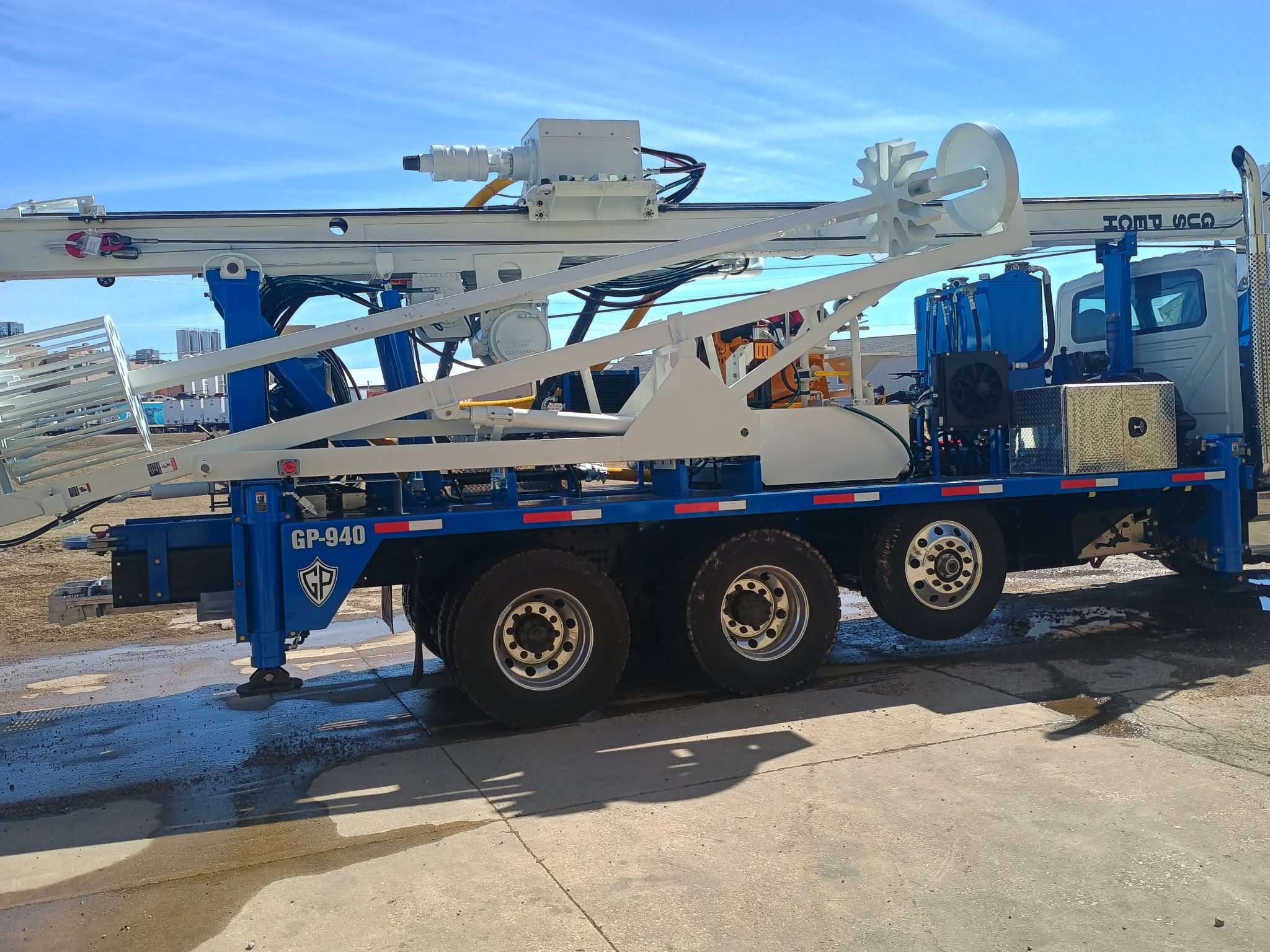

2026 Gus Pech 940 Badger

Description

GP-940XMR Brat series drill:

GP-940 hydrostatic top head drive (0-107 RPM@ 9,000 ft lbs., 0-200 RPM @ 4860 ft. lbs.
torque) –
HD – 24” clearance rotary style drill table
Two-way cross-top head slide; planetary top head drive

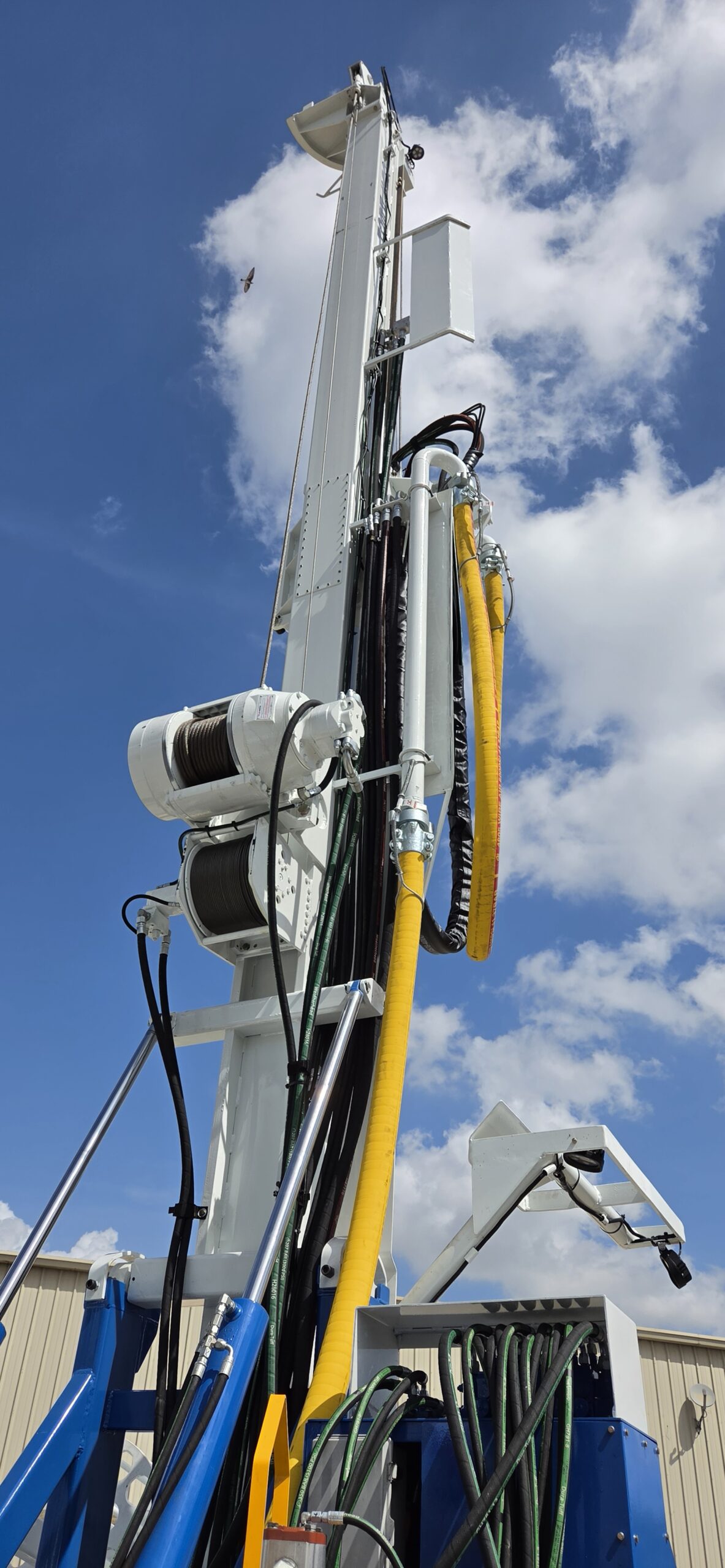

26’ stroke, cable, hyd. cylinder actuated pulldown/retract drill system (pulldown 32,637 lbs., 73’
per minute) (retract 40,000 lbs., 57’ per minute retract), (12" tube style mast); Tower tool carrier
for transportation
Two-speed retract; Pulldown/holdback feed control system; Bypass circuit for rapid
pulldown/retract system
Mast Mounted Tool Carrier for Drill Rod and Stabilizer in Head
Hydraulic pump drive systems with enlarged pump for air compressor
HD hydraulic swing around jib for main winch line, no extension

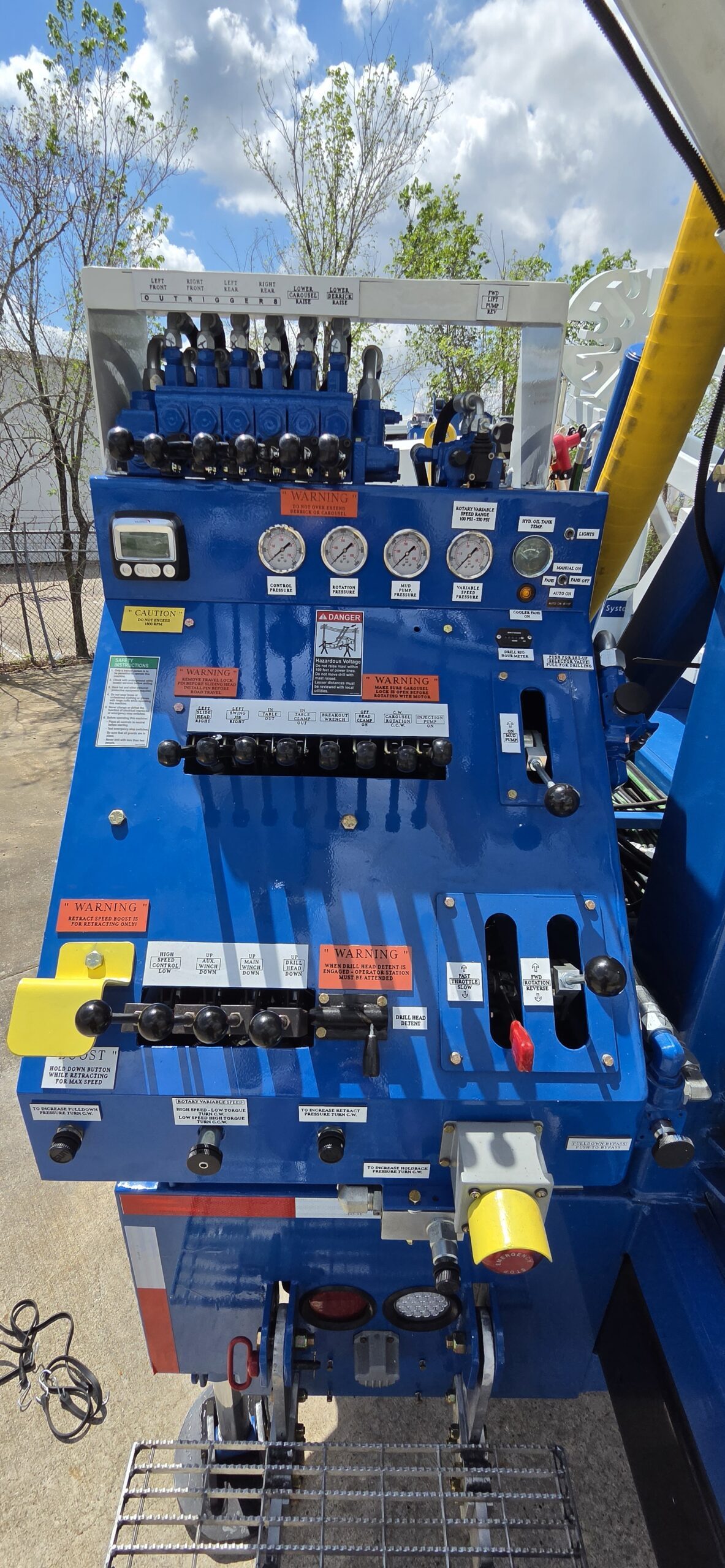

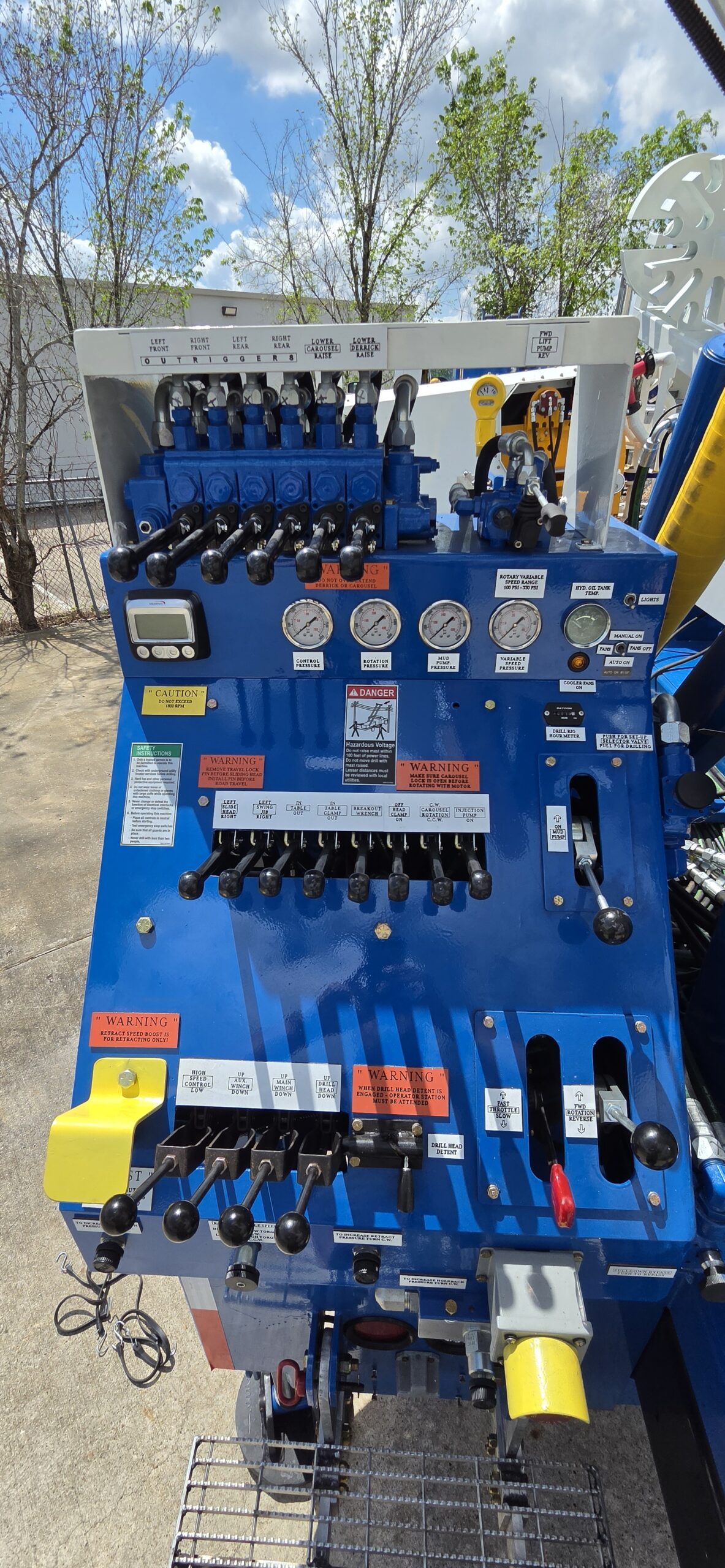

Operator controls including tachometer, key ignition switch, and gauges pertinent to the
operation of the drill
Operator and helper foot stand – aluminum
Outrigger 4 point hydraulic 5” x 30” x 3” front and rear with anti-slip strips on bottom of
outrigger pads
Rotary package:
Western Rubber SI swivel, hoses, safety cables, valving, piping, suction hose and HD Break
out wrench
FSPB06DH – Floating Shock Sub – Deep Hole – 3-1/2" IF Box X 3” Geomaxx Thread
Pin, 3" Float, 7" OD, 20" S-S
5,000# Braden BG8B winch, 0-475 fpm@60 gpm; 1/4”x1200’ cable w/swivel hook
18,000# Pull-master winch w/rapid reverse 0-96 fpm up/0-440 fpm down; 5/8”x150’ cable
w/slim line & swivel hook
5 x 6 GD Piston mud pump with hyd. motor, HD coupler, frame, installed ( Brand New Pump )
4 x 3 Centrifigual with Hydraulic Motor and Frame, with Diverter Valve to run 600 cfm 250 psi
Van Air Compressor and frame to mount compressor
18 GPM John Bean Water Injection Variable speed Control Plumbed for Auxiliary to Rear to

Run Lift Pump for Mudslayer

Hydraulics HD cooling system for, extra return line filters and install both return line/filters to
top oil tank
Hydraulic Pipe Spinner for Spinning out 3 ½” OD Drill Rod

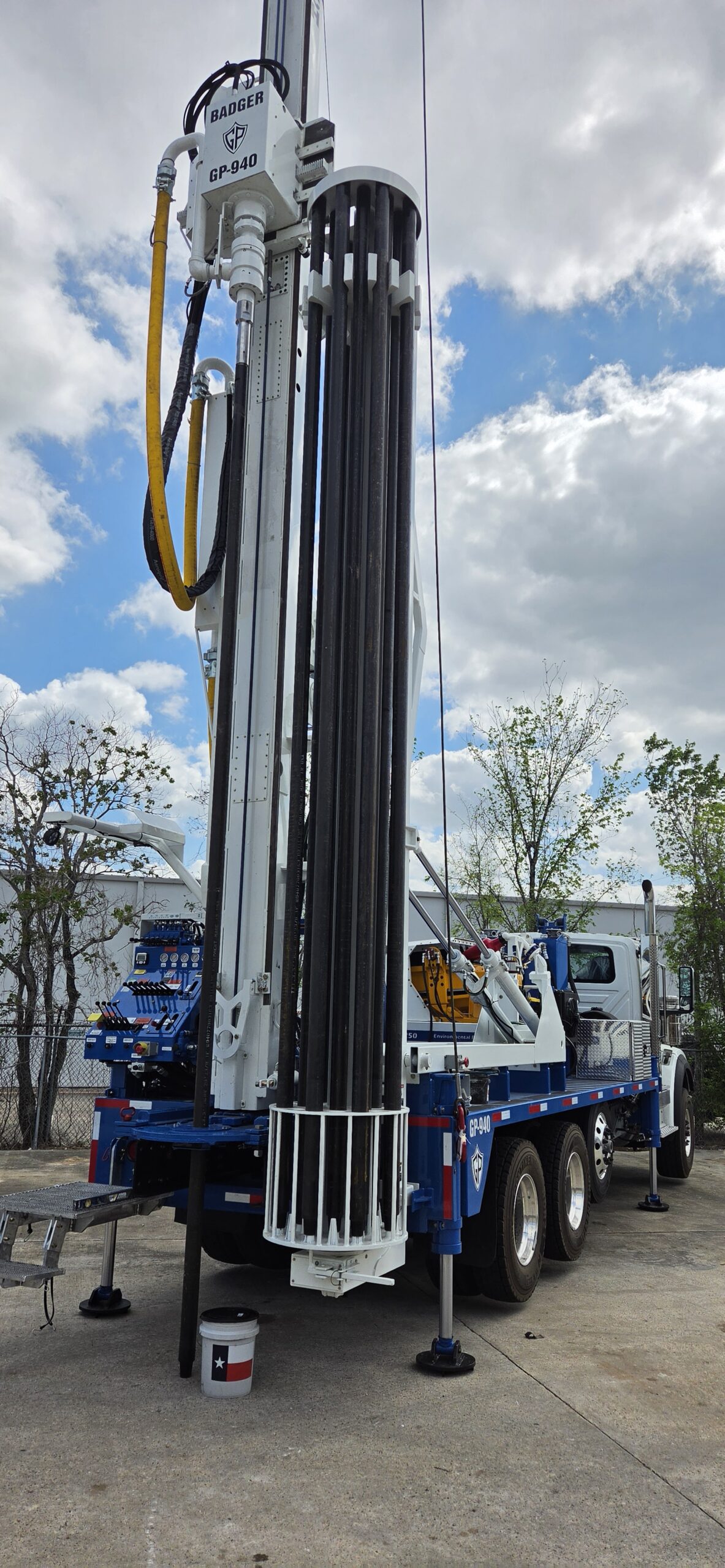

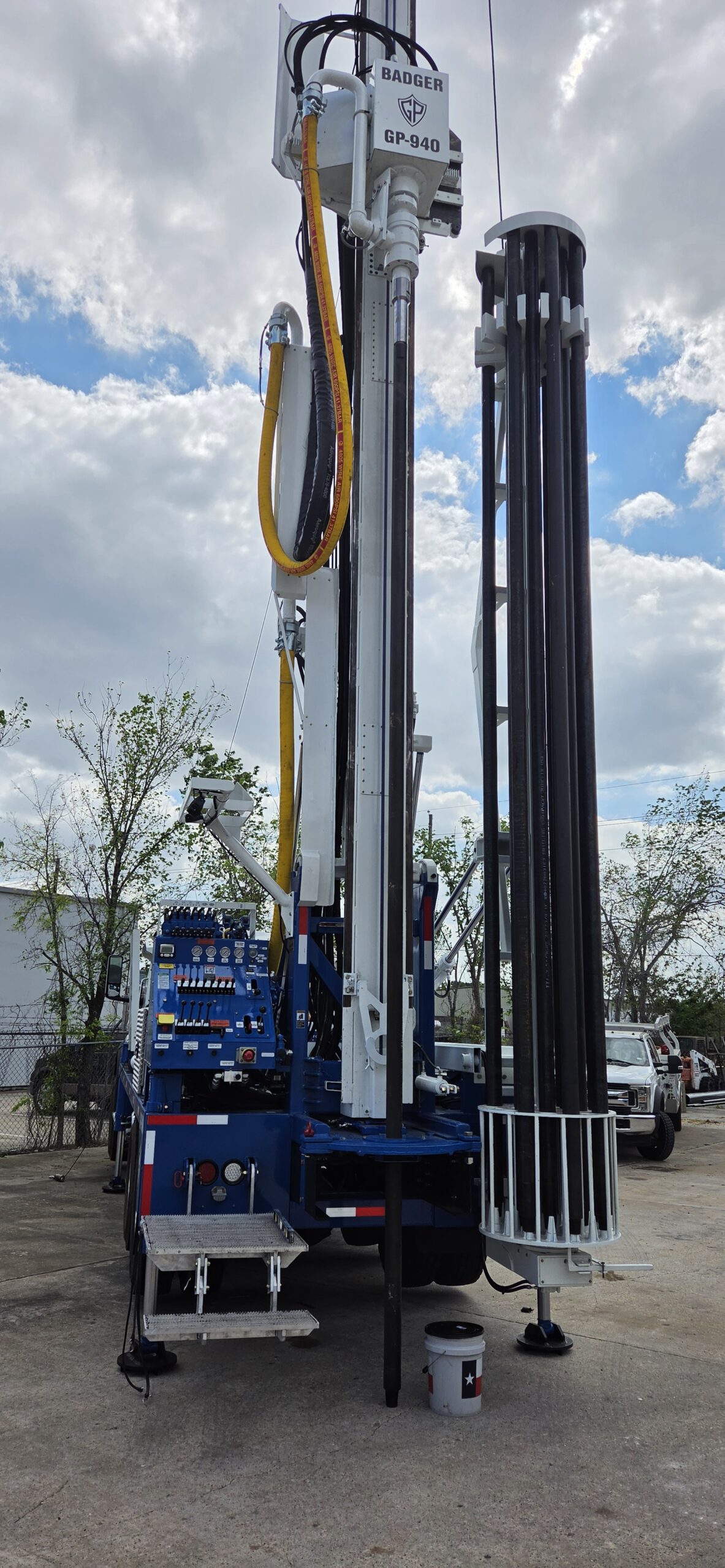

Rod Carousel for 24 Rods/ 3 ½ inch OD x 20’ with 3” Geomaxx Thread Drill pipe
Two toolboxes – steel
Drill rod adapter attachment 8 bolt, sub saver 24” overall for 3 1/2” x 3” Geomaxx Thread
Drill rod bushings for 3 1/2” flush pipe, and breakout fork for lower drive table
Special drilling lighting system on tower and head guard

250 to 300 gallon Mudslayer on Deck

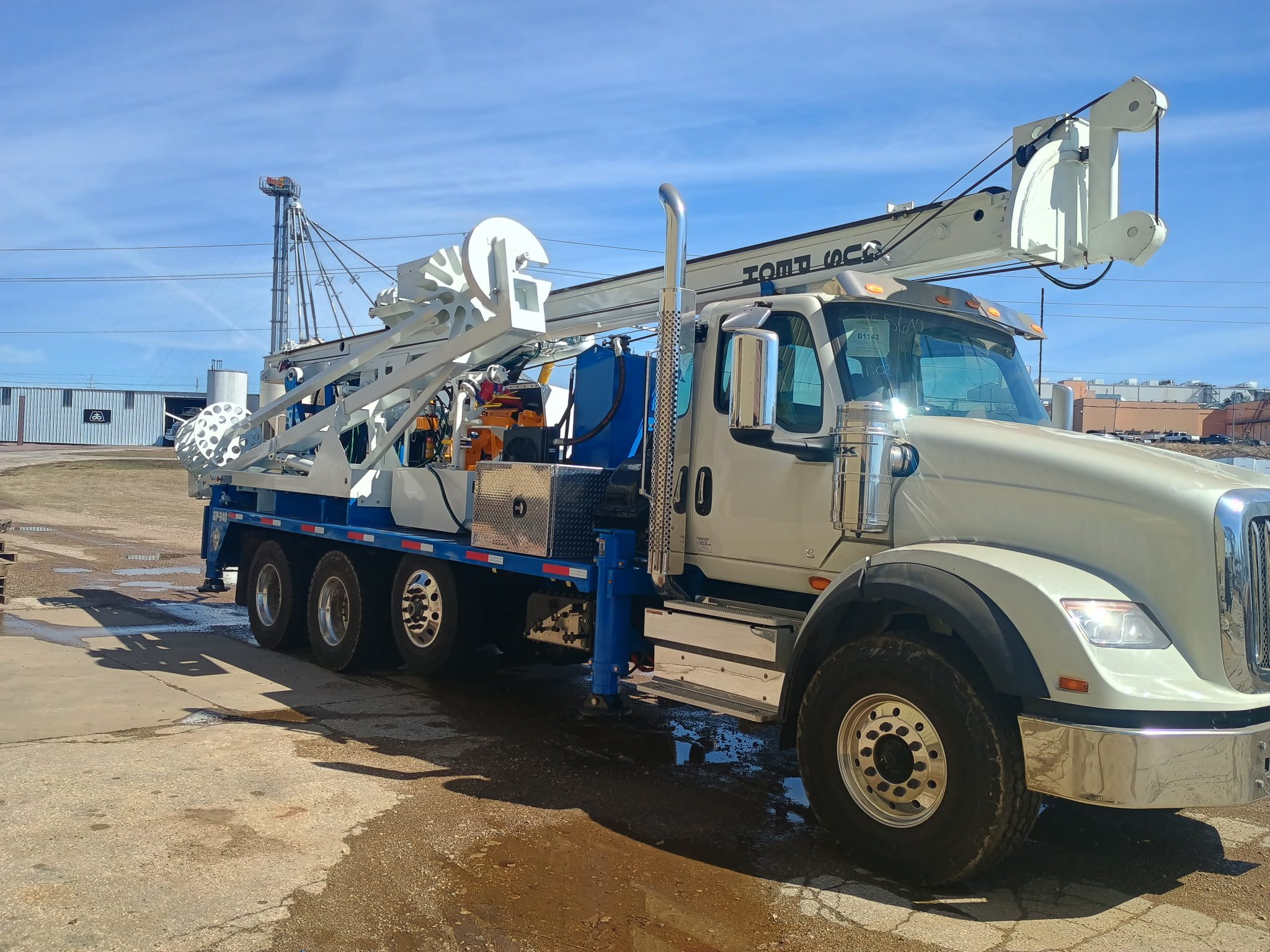

Mounted on:
2024 International Truck HX620
20,000 lb Front Axle, 46,000 lb Rear Axles, 20,000 lb steerable pusher axle,
Cummins X15 565 Horse Power, 4700 Allison Automatic Transmission.
