2010 Astec Earthpro 4550X

Description

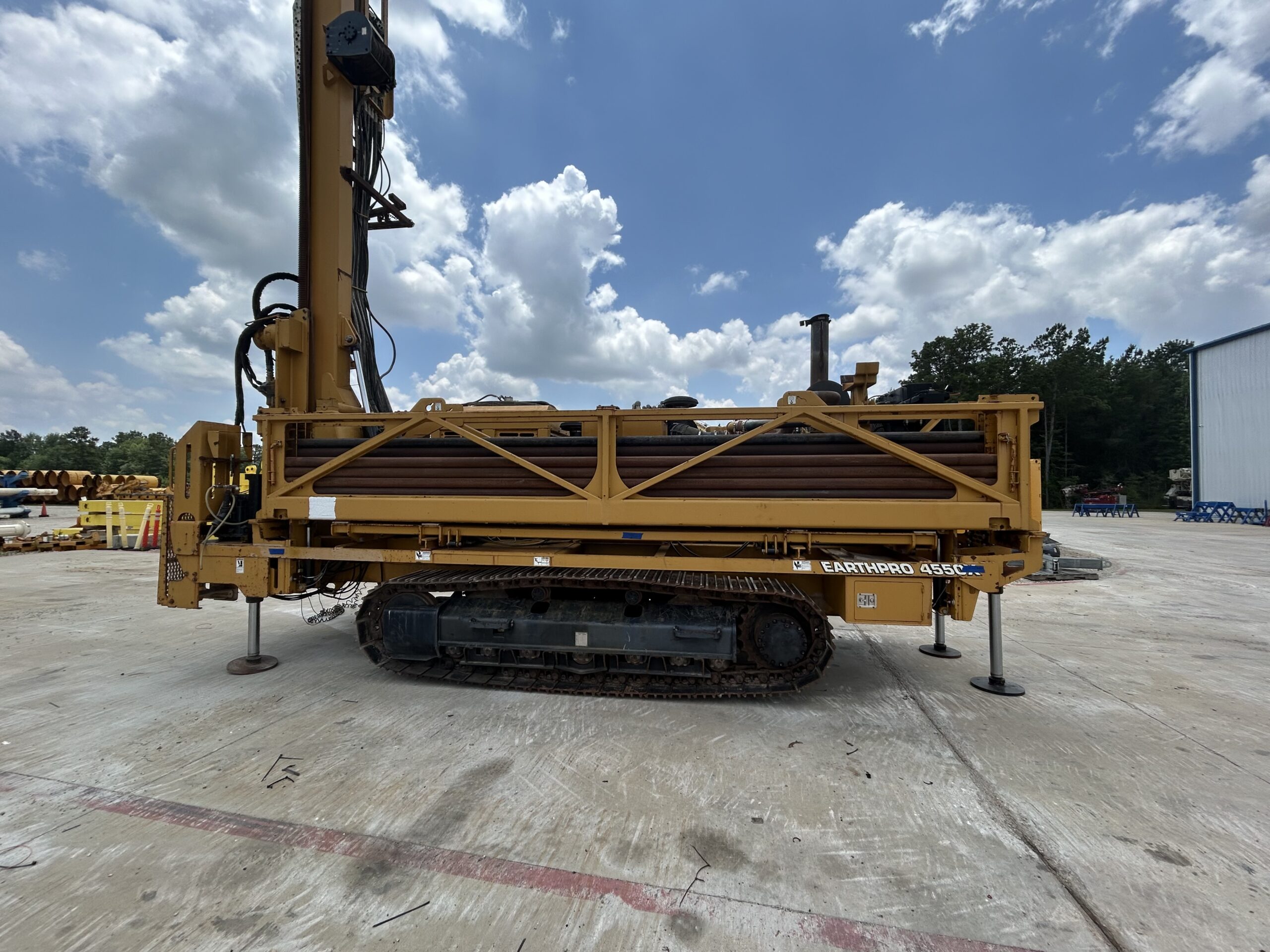

2010 Astec Earthpro 4550X Track Mounted Geothermal Drill Rig

Recently Refurbished

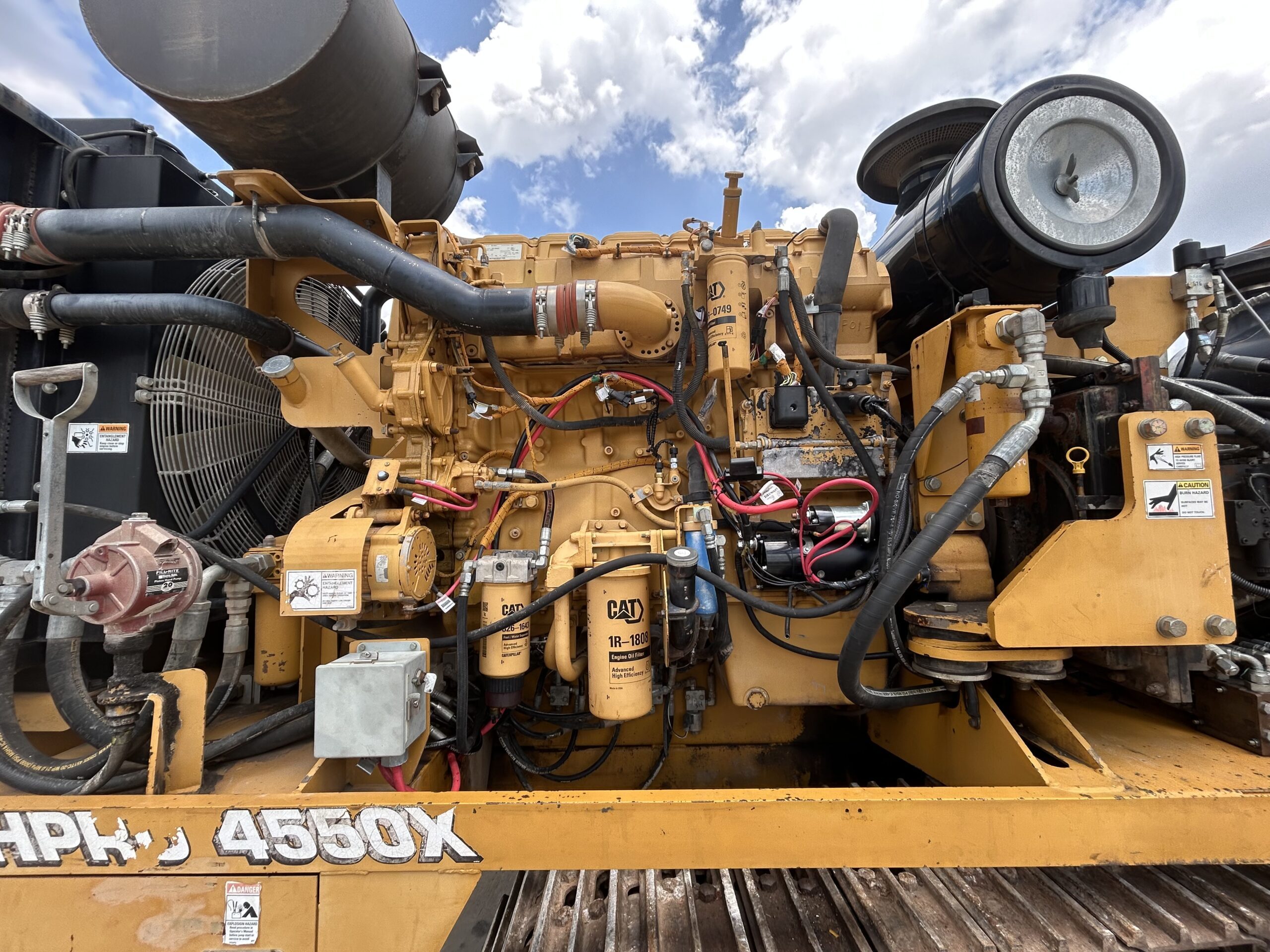

Powered by Caterpillar C15 Acert 580Hp

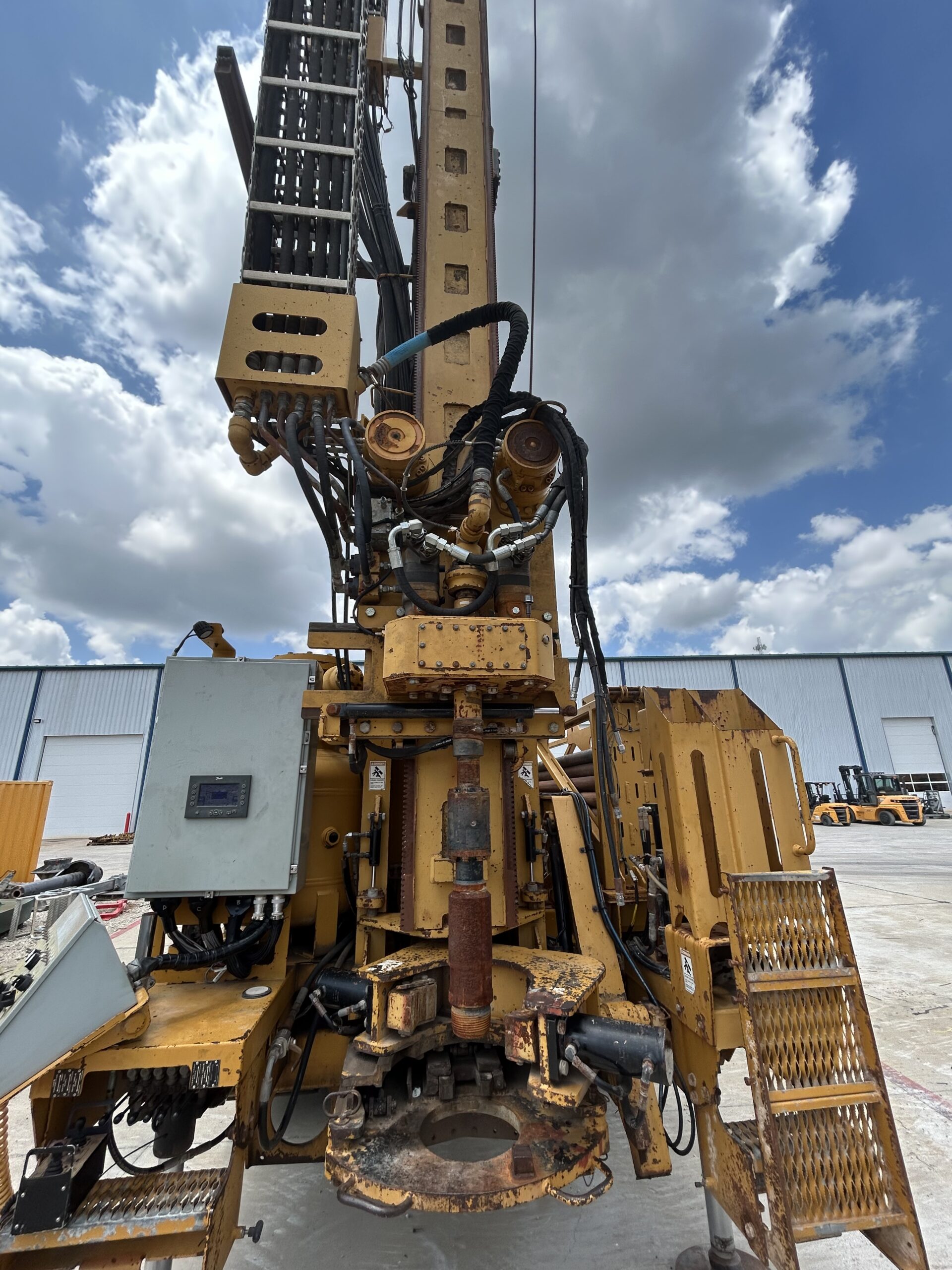

Mast

Lenth- 33ft 9in

Head Travel 25ft

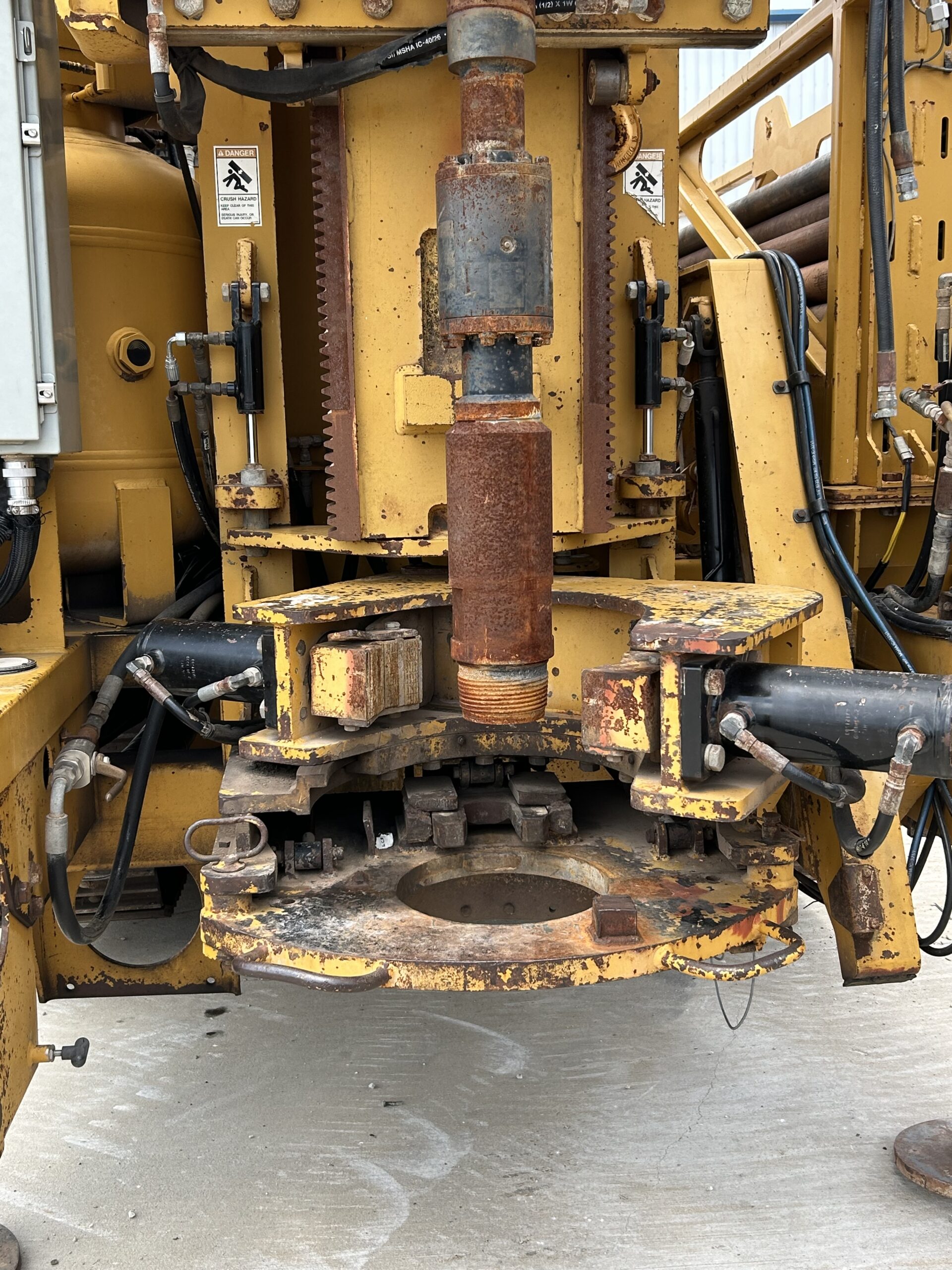

Table type- Split Table Design

Table- Swing out rear and retractable front

Table Capacity- up to 12in

Breakout Wrench 3-14in diameter

Breakout wrench Torque- 9,000ft.lbs

Wrench Swing- 30 degrees total

Wrench Clamp Force- 58,000lbs

Feed System

Pull up capacity- 45,000lb

Pull down capacity- 22,000lb

Low speed- 107 fpm

Medium speed- 160 fpm

High Speed- 214 fpm

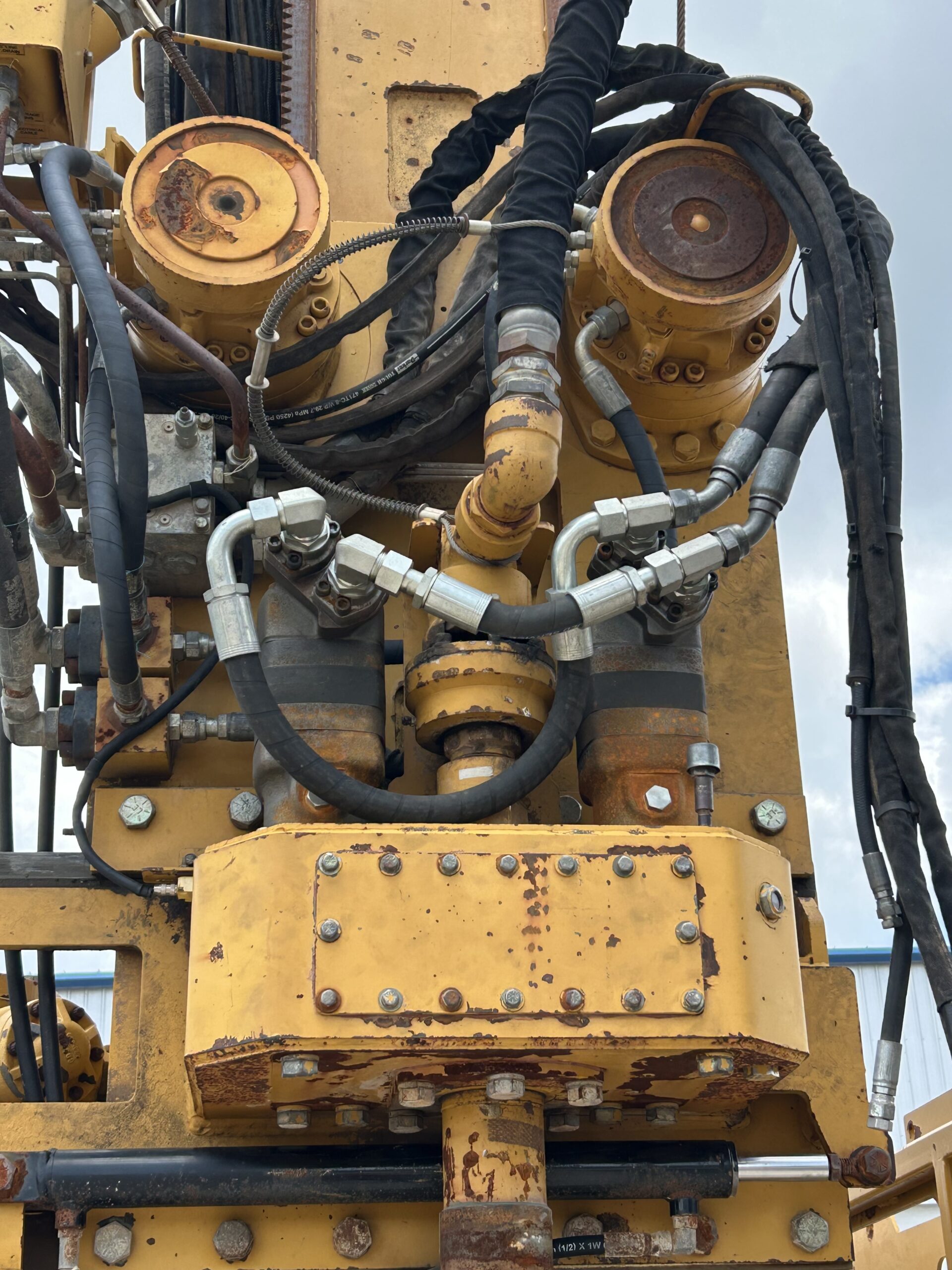

Top Head Rotation

Low speed- 0-95 rpm

Medium Speed- 0-143 rpm

High Speed- 0-190 rpm

Torque- 5,000lb-ft

Automated Pipe Loader System
A single operator can drill and trip out up to 600 feet of pipe without winch assistance. Its pipe basket can hold up to 30 pieces of 20-foot pipe in 3.5-, 4-or 4.5-inch diameter.

Winch

Hydraulic-drive planetary winch with spring-applied hydraulic release brakes

Standard Capacity- 15,000lb

Cable Length- 150ft

Cable Size- 5/8in

Speed- 82 fpm

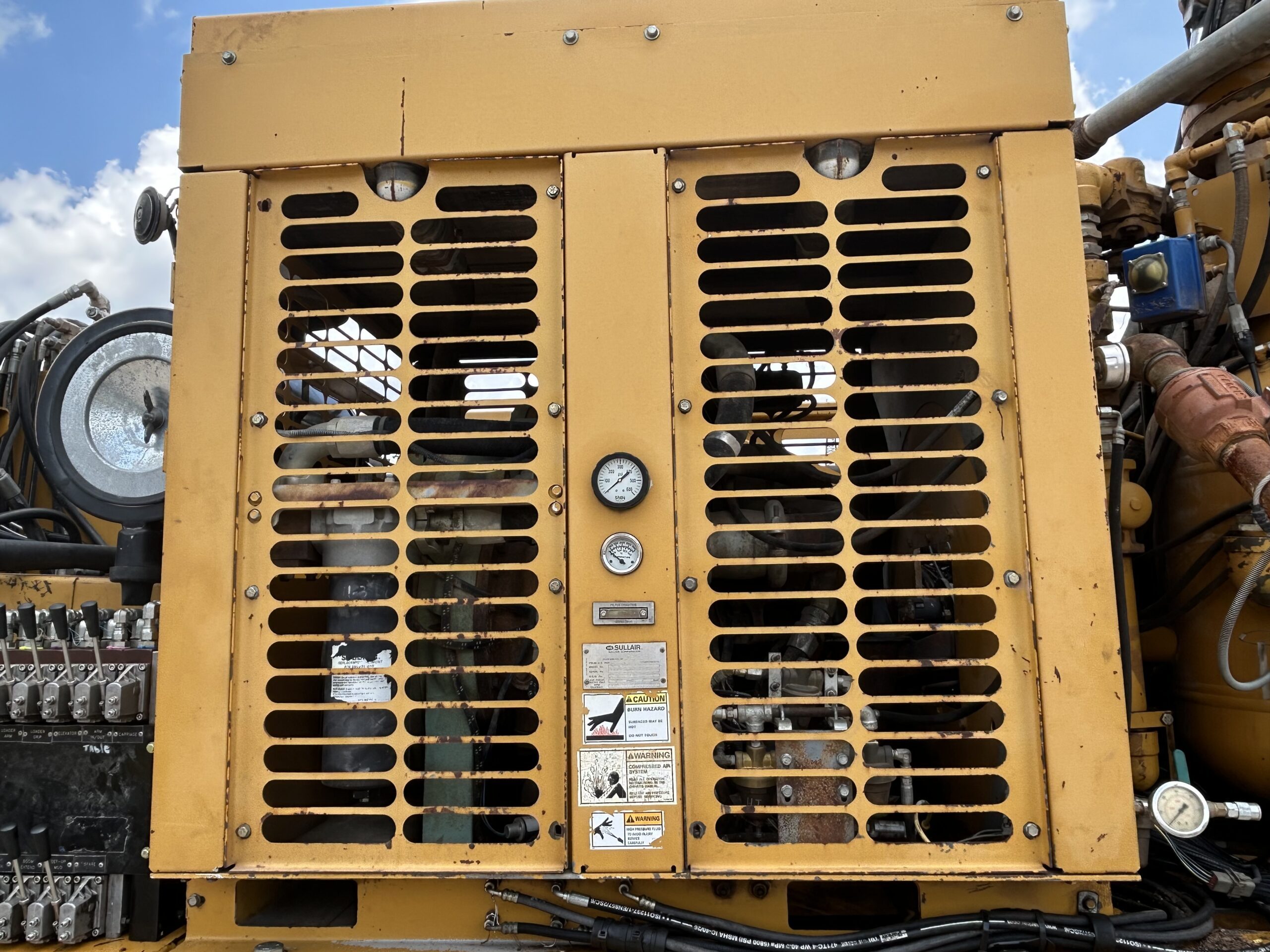

1050/350 Sullair compressor

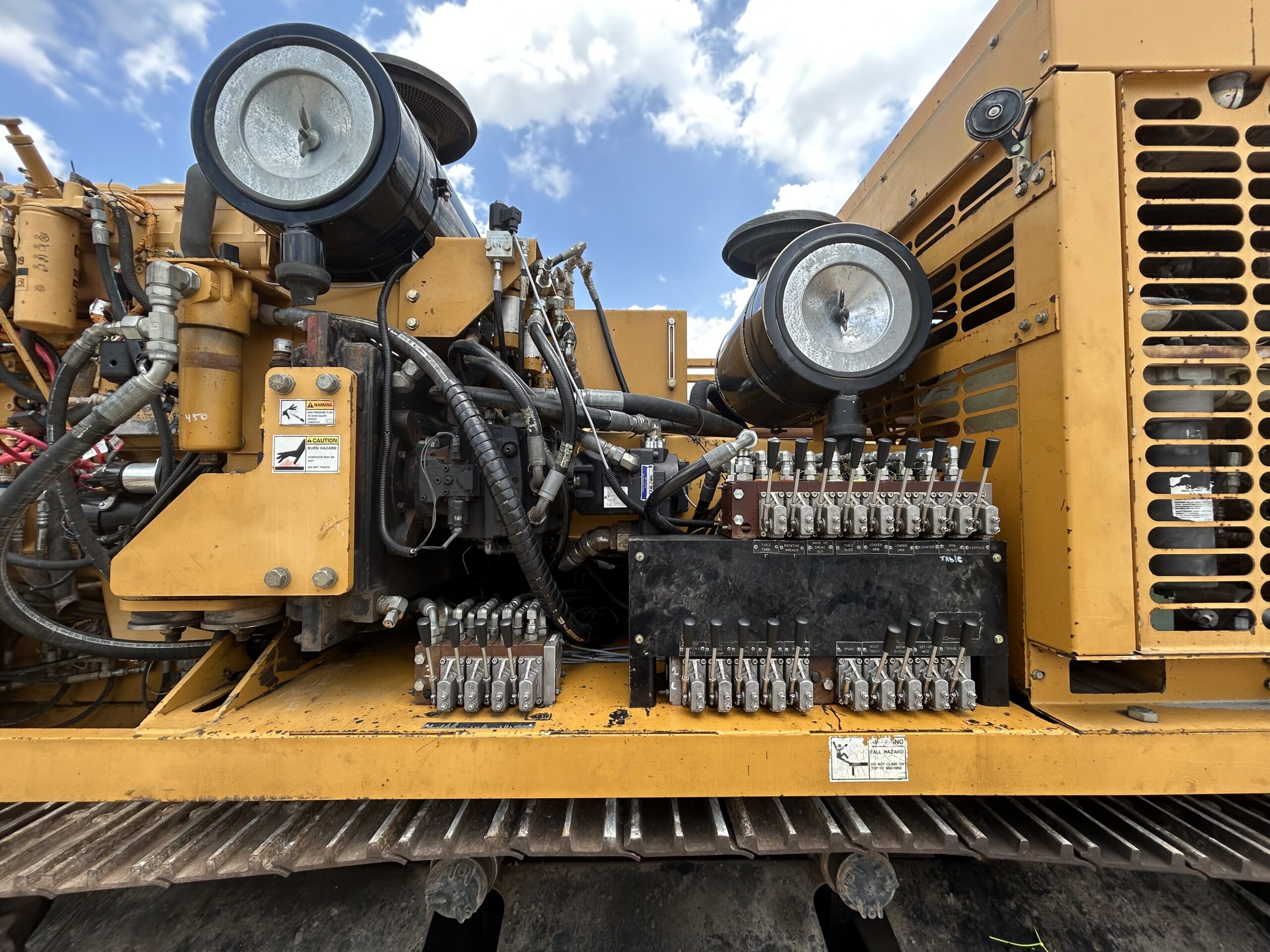

Dual multi-function joystick controls are mounted on a console.

Mounted on Caterpillar 315L excavator tracks

Weight- roughly 55,000lbs

200gallon fuel tank

Dimensions-

Width- 8ft 2in

Height- 11ft 8in

Length- 37ft
