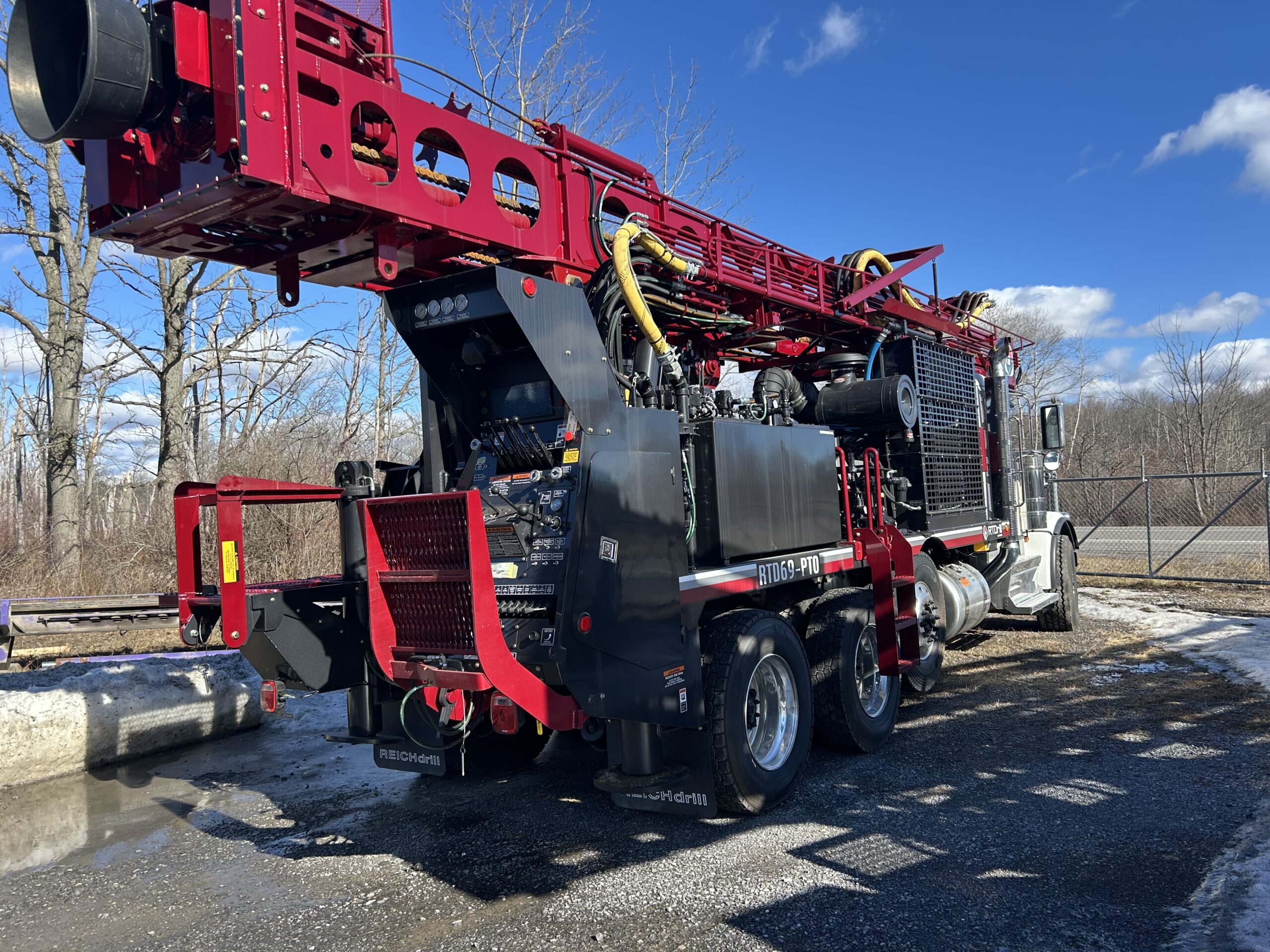

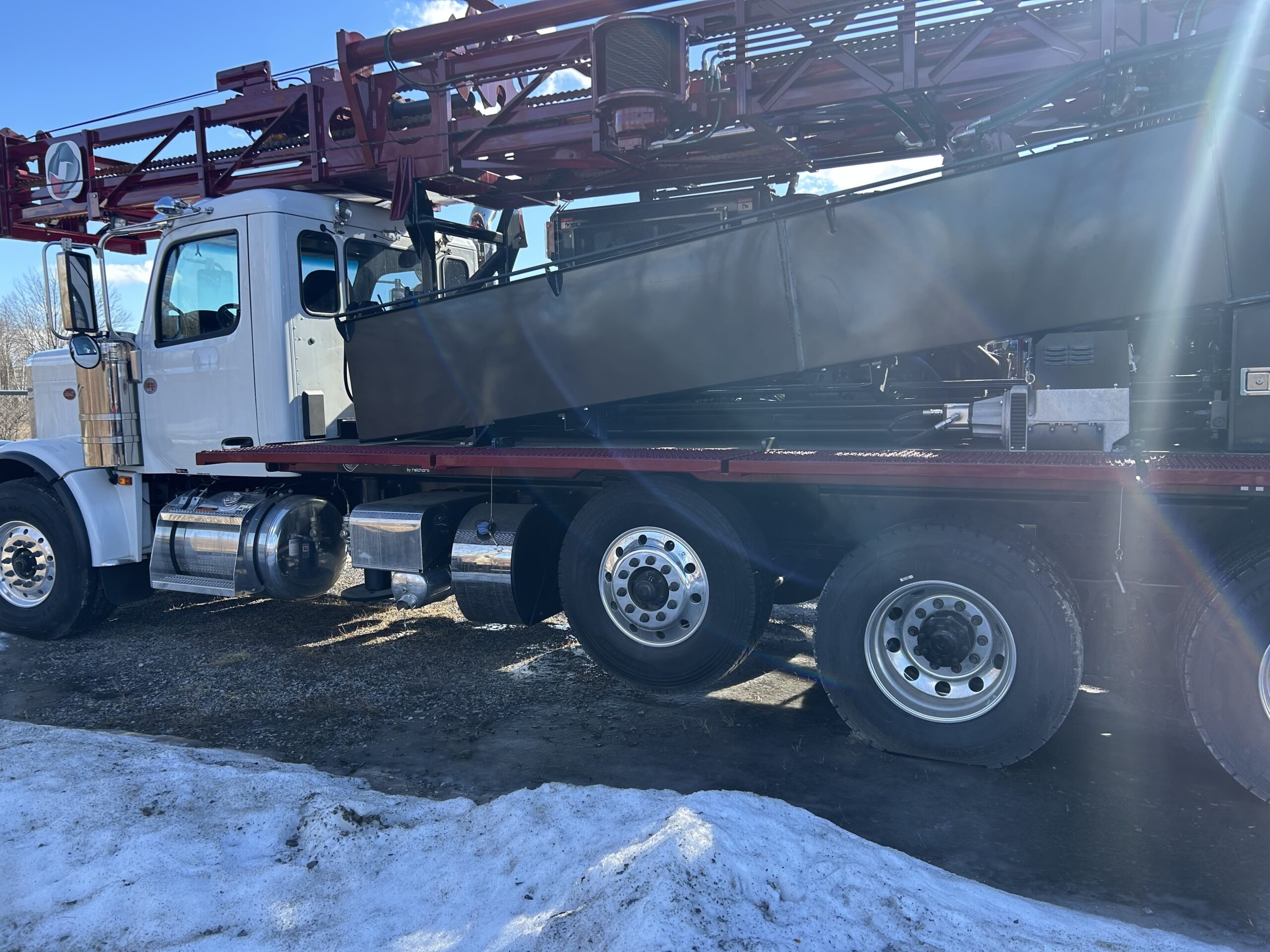

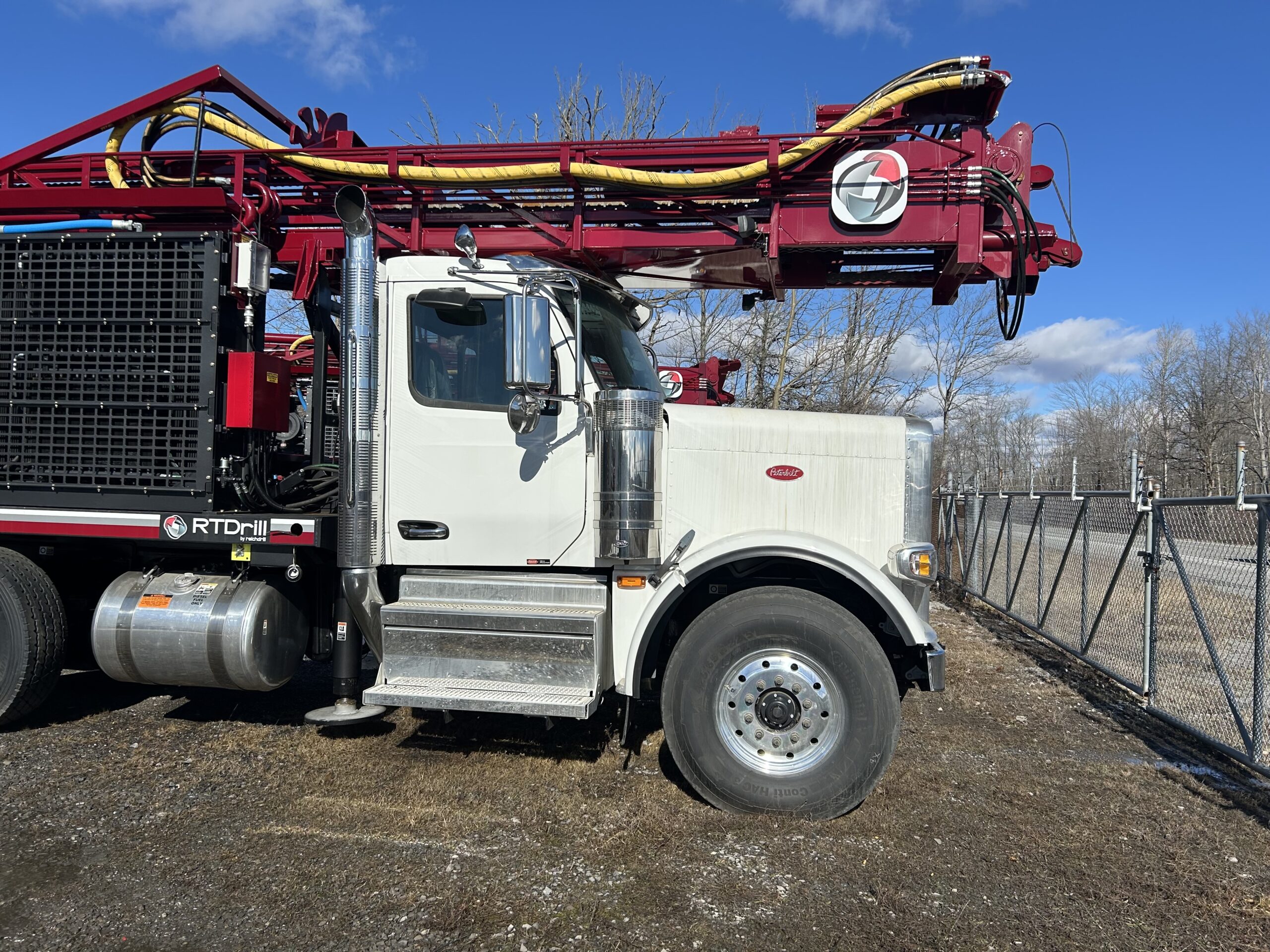

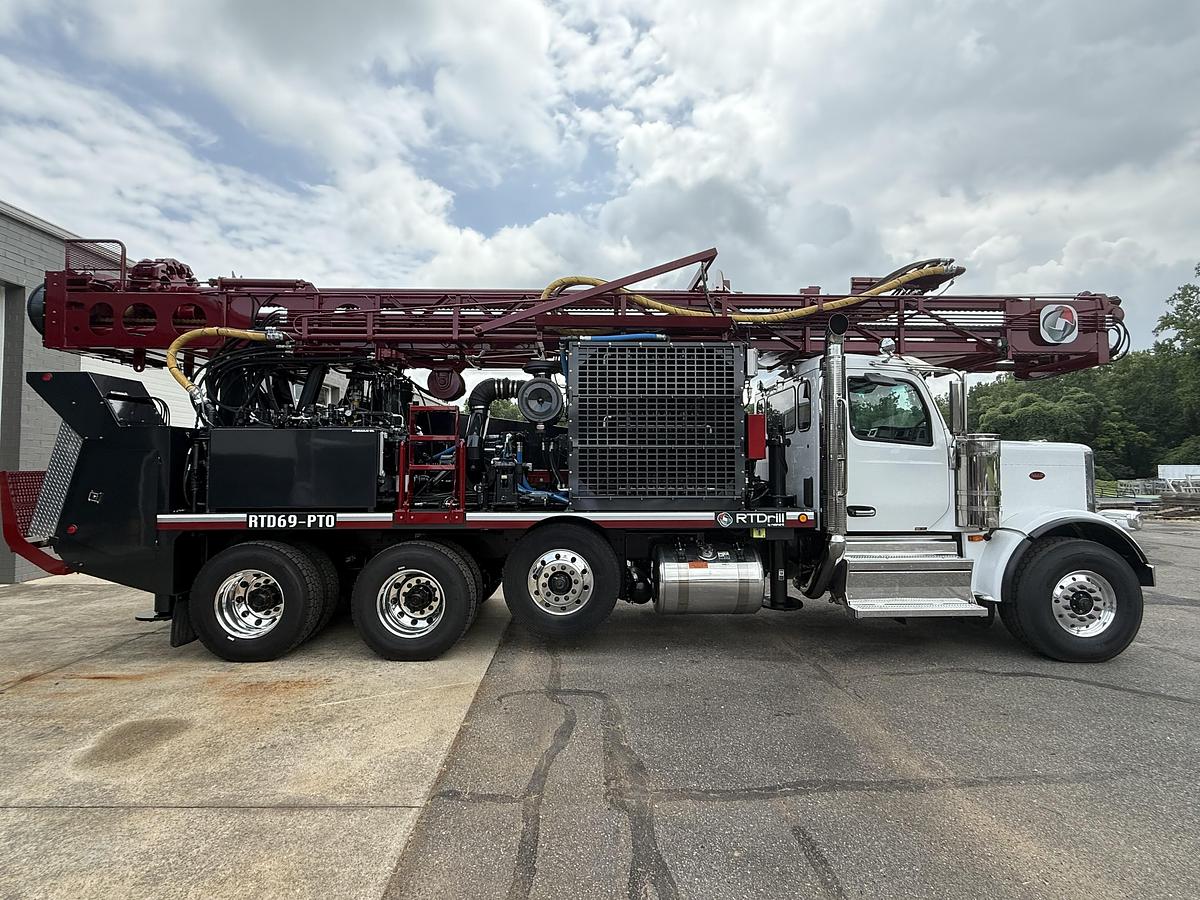

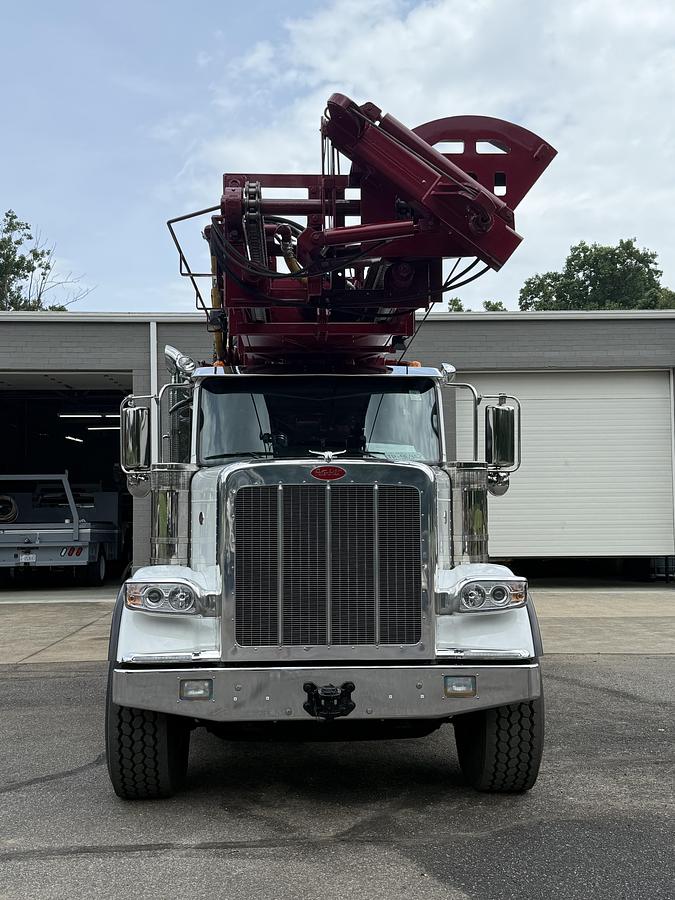

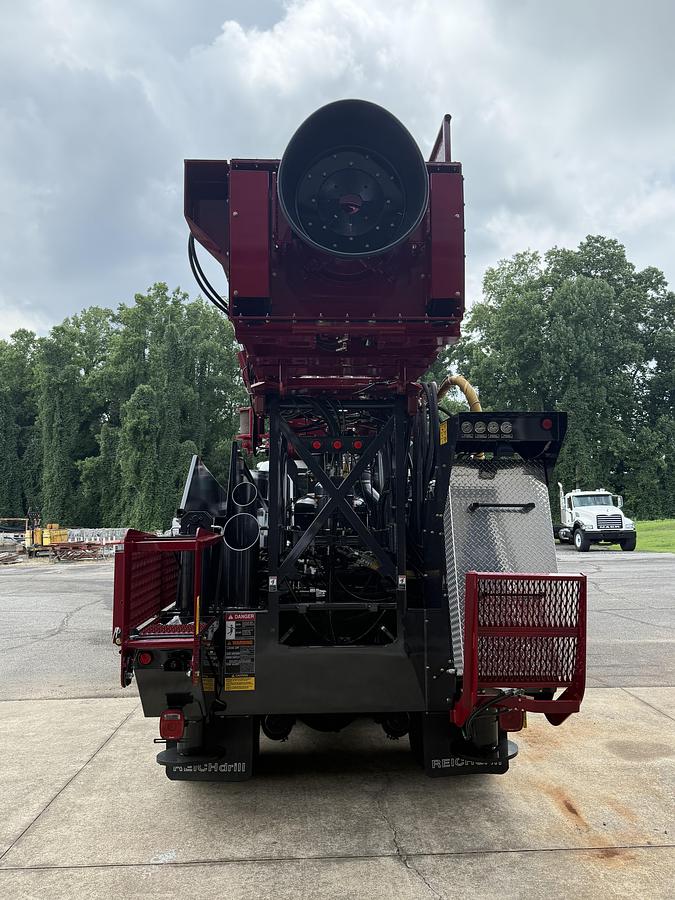

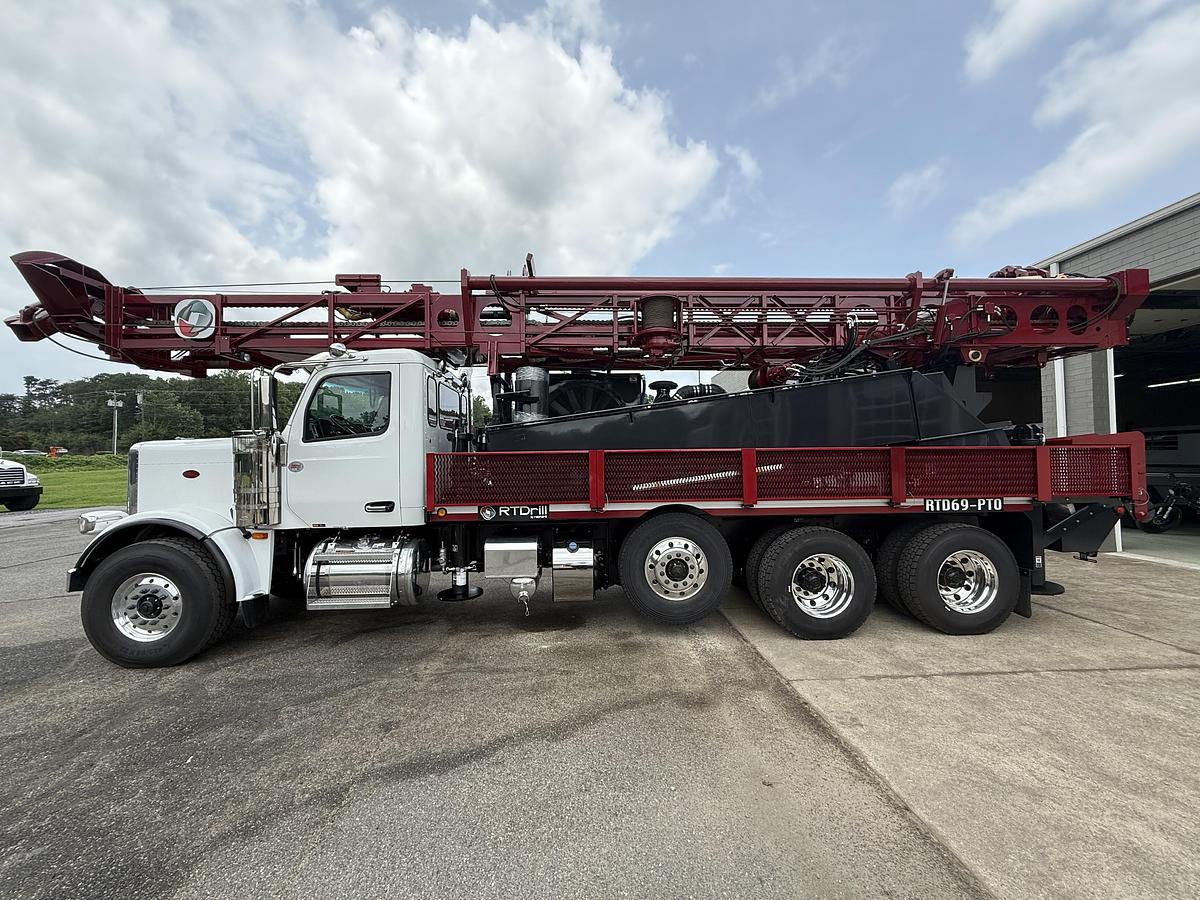

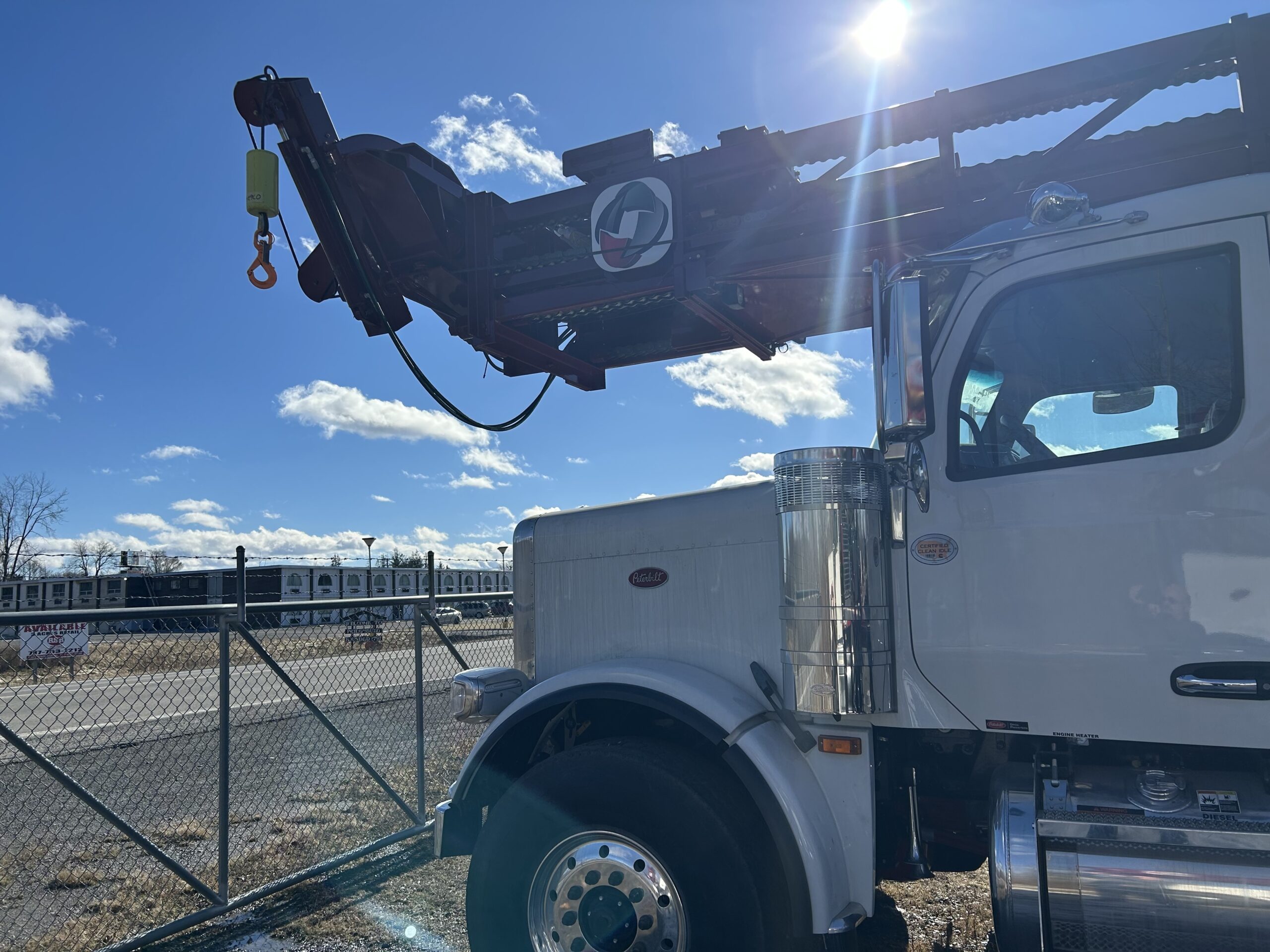

2025 Reichdrill RTD69 – 690

Description

Rotary Head 0-141 RPM @ 64,543 lb-in (7592-Nm) torque w/high pressure filter
Reichdrill or equivalent 1070 CFM @ 375 PSI (30.3 m3/min @25.9 bar) compressor
Air pressure regulator; 8-gallon (30.3-L) air line lubricator
Multicore cooler for up to +1200F (+490C) ambient temperature
Thermostatically controlled fan circuit for improved cooling & fuel savings
Mast 34’ (10.4 m) w/28’ (8.5 m) stroke; Ø22 in (559 mm) table opening
43980-lbf (195.6-kN) pullback (160HS chain) w/35000-lbf (155.7kN) pulldown (140HS chain)
REGEN for increased rapid feed function
Air operated holding wrench w/hydraulic raising/lowering
7 pod carousel for 4” (102 mm) x 20’ (6.1 m) drill pipe w/hyd indexing – set up for stabilizer
Hydraulic swing & hydraulic carousel lock pins
8500 lb (3855 kg) winch
Hydraulically extendable jib boom w/2700 swing
Wireless radio helper’s remote controls for jib swing, extend, & retract, carousel index/lock, winch up, and two speed winch down
20 GPM (76 LPM) water injection pump
Independent hydraulic circuits for water injection and winch controls
Torque limiter control w/by-pass on/off
Holdback control w/by-pass on/off
Feed override w/by-pass on/off
Mud line stand pipe w/hose spud and cap
Cribbing rack (rack is mounted in mast locks)
Auxiliary blowdown valve to vent the downhole air from the drill string during pipe changes
“Y” piping and 2” ball valve to add auxiliary air to the drill air stream
Hydraulic cylinder operated cable breakout wrench & Petol wrench w/chain for pipe handling
4-leveling jacks: 2-rear 36” (916 mm) stroke, 2-front 48” (1.2m) stroke, all include Ø7”
(178mm) jack boots and built-in safety check valves
Sloped 15-piece rod box w/grab rail and pipe riser; rear mounted tow hooks
Drill pipe lifting rod
Spindle sub-4” API IF pin thread & customer specified box thread
Ø4” (102 mm) or Ø4 ½” split table bushing
Tool box
Initial 50-hr filter service kit
Folding rear platforms for operator and helper, 19” (483 mm) wide folding split walkway
Locking aluminum vandal cover to protect the operator’s station controls and gauges
Five (5) Halogen night lighting package includes mast and operator’s console
Safety items: Falling drill pipe guard mounted on mast, safety kit including: two hard hats & one
Fire extinguisher, & one (1) Emergency (E-stop) mounted at operator’s control station
Two (2) combined safety, operations, maintenance & parts on digital USB drives
Standard lubricants: compressor = Chevron HiPerSyn IS032, hydraulics = Coastal AW46 oil
Gear lubricant = 80W-90 & grease = Chevron Ultiplex EP2
Paint: Reichdrill standard 2-tone paint; Reichdrill red and Reichdrill charcoal
Can Be 4 x 3 Mission Sand master Centrifigul Mud Pump

Truck chassis:
VIN# 1NP-EX4TX-2-SD723273

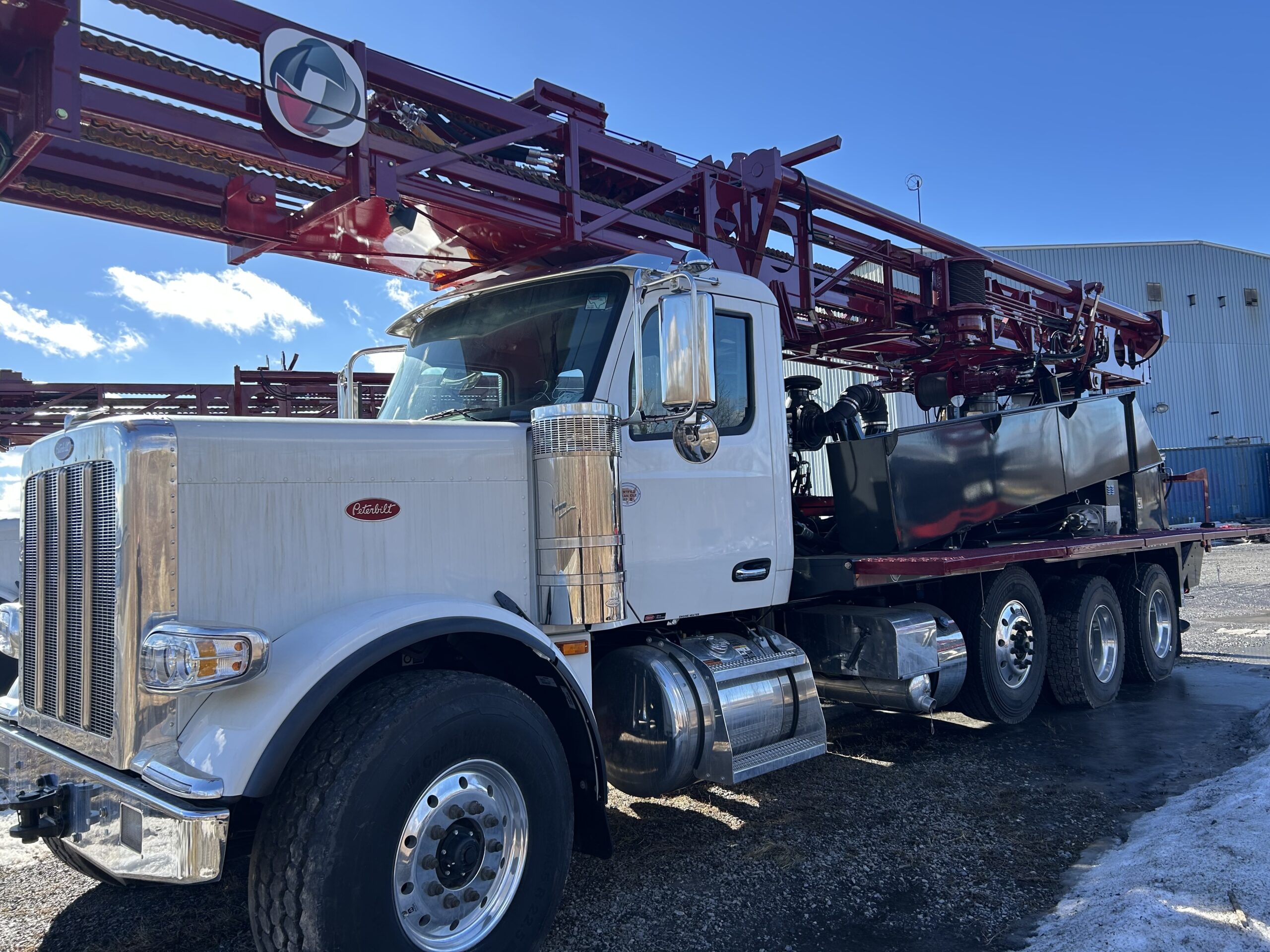

Peterbilt Model 367, 6×4 chassis, Cummins X15 605 HP diesel engine w/1850 lb-ft torque, Eaton RTLO189188 18 speed transmission, engine brake, 46,000 lb rear axles, 22,000 lb front axle, Hendrickson RS-463 suspension, differential lock w/speed interlock, 20000-lb steerable lift axle, Bluetooth phone, AM/FM/CD Weatherband radio, Cobra 40-channel CB radio, heated mirrors, battery disconnect, A/C, cruise control, air dryer, aluminum wheels, dual 80 gal fuel tanks, DEF tank w/capacity of 20.7-gallon, engine exhaust after treatment located under RH cab w/vertical stack

Standard mounting package

S070 Control station hood
S180 18-piece drill pipe rod box in lieu of standard 15-piece
S190 Helper’s platform mounted “junk box”
X550d Dual hammer holder for 7” and 10”
X600c Carousel mounted stabilizer holder (indicate size)
R400 0-141 RPM @ 64543 lbf-in torque rotary head
(in lieu of 106 RPM)
N400 Reichdrill extended compressor warranty, to total 60 mos
Or 10000 hrs from start-up date, Reichdrill replace
The air end, parts only
UN-A Washington rotating diverter mount only
ACC-B Sandline winch
M250hh Heavy pullback: 58414-lbf (259.8-kN) pullback (200HS
Chain) & 35000-lbf (155.7-kN) pulldown (160HS chain)
12,000 lb winch
400 amp Welder 10,000 Watt Generator
Mounted on Jack left rear W/ 40 gallon Variable speed circut
7 in x 13.6 in Stabilizer to fit 8in hammer in Carousel
1000 FT of 4” Drill rod Reichdrill Style NC

Comes with 5 And 6 year Warranties on Peterbilt Truck
Start up at Customers Location
